Diamond Drum Wheel for CNC Sink Cutouts

The DINOSAW diamond drum wheel is a CNC grinding tool used after routing to true and clean sink cutouts and inside openings in stone countertops. It runs wet on granite, quartz, and marble, with center waterfeed to keep edges cool. High-grade diamonds and a stable bond give fast stock removal and predictable wear, so shops get consistent cutout sizes and smoother inside edges before polishing. Multiple diameters and standard joints fit most CNC machines, reducing chipping, rework, and downtime.

Cutout TruingTrue and smooth sink openings after finger-bit milling

Φ45–100 mmFour drum sizes from tighter radii to large opening walls

Center Water FeedThrough-tool cooling for full-depth internal grinding

Applicable Materials

Granite, quartz, engineered stone, marble and quartzite

Certifications & Credentials

CE Certified · ISO 9001:2015 · Industry Standard Drafting Participant · 120+ Countries & Regions Served

Get a Custom Quote

Dinosaw machine Diamond Drum Wheel for CNC Sink Cutouts

Applications Performance Specs Technology Comparison Manufacturing Support FAQ

Compatible Materials & Products

CNC sink cutouts: true inside edges fast with center waterfeed.

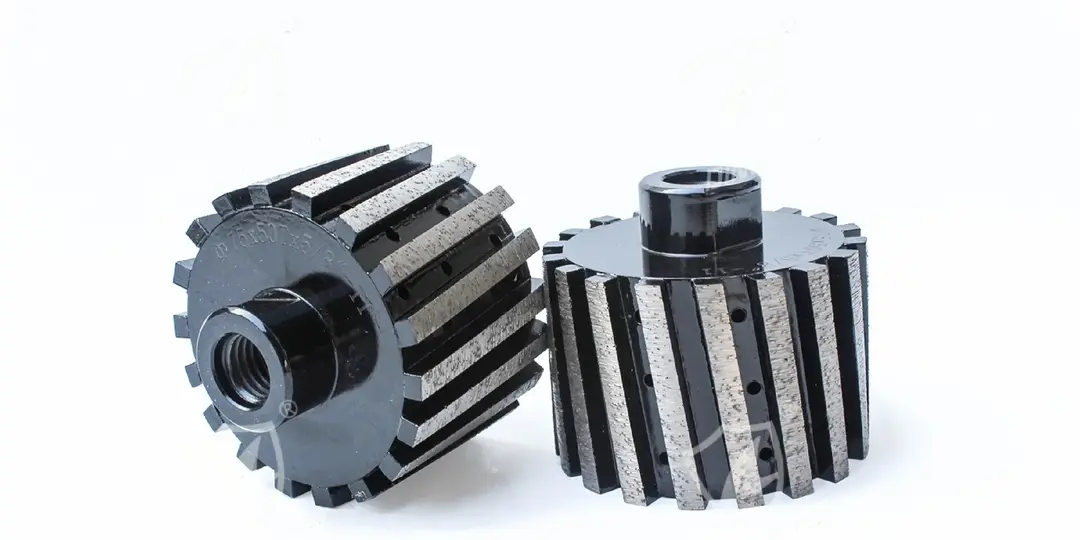

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (32)@1.5x

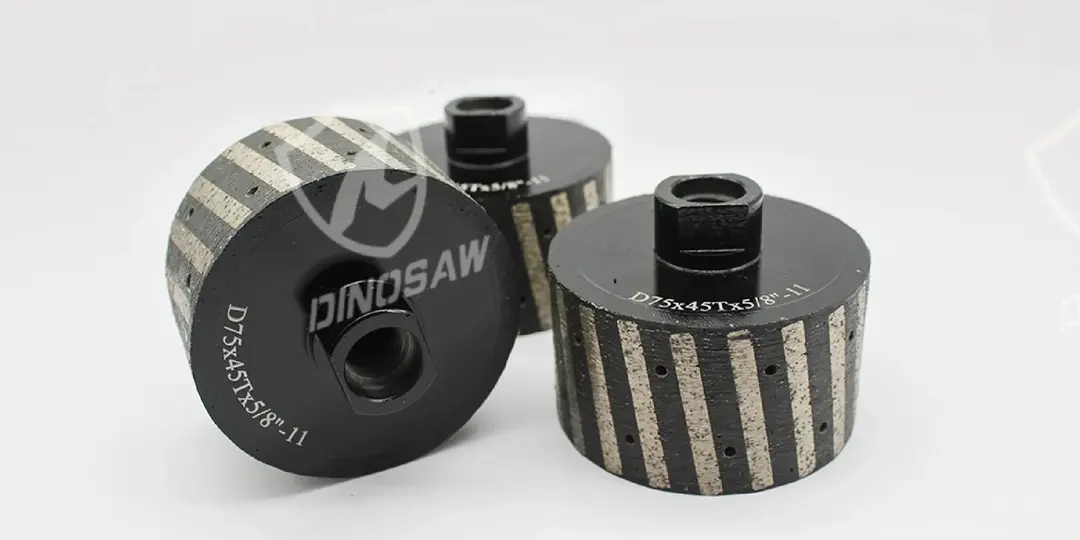

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (1)@1.5x

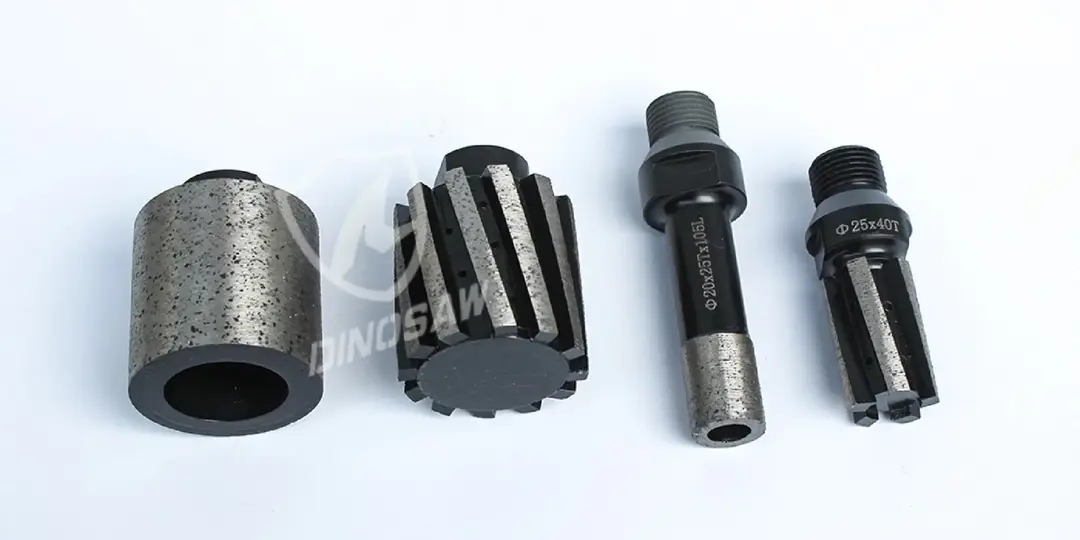

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (7)@1.5x

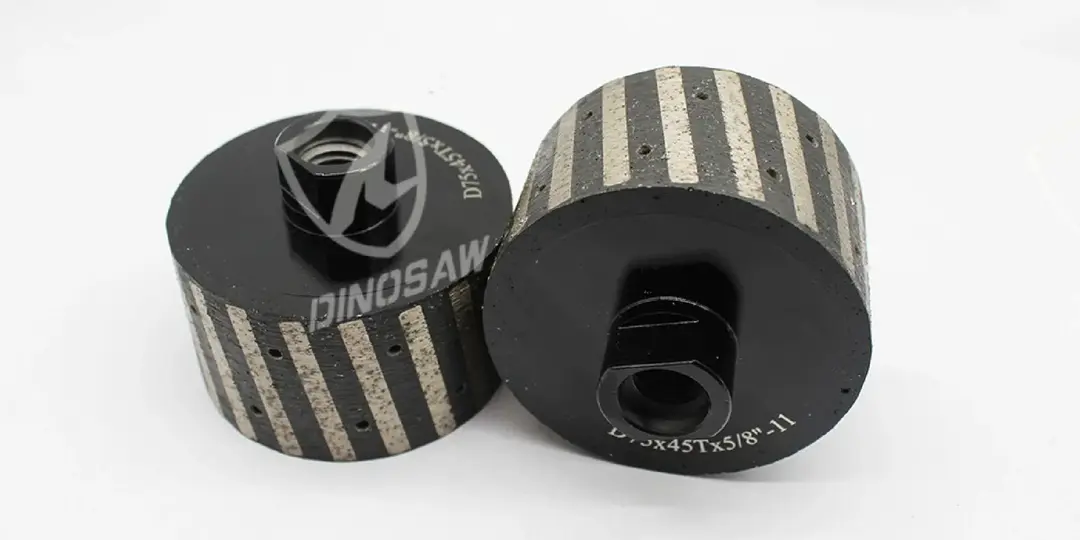

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (51)@1.5x

Quartz > Inside Edge Grinding

Quartz and engineered stone can smear resin, burn, or micro-chip on the inner wall, especially at high feeds or unstable coolant. Defects show after polishing. Controlled diamond concentration plus center waterfeed helps the wheel cut instead of rub, keeping the face open. Use coarse grit for fast correction, then medium grit for a smoother pre-polish base. You get a cleaner sink cutout with less edge repair, faster polishing, and predictable tool life for batch countertop production.

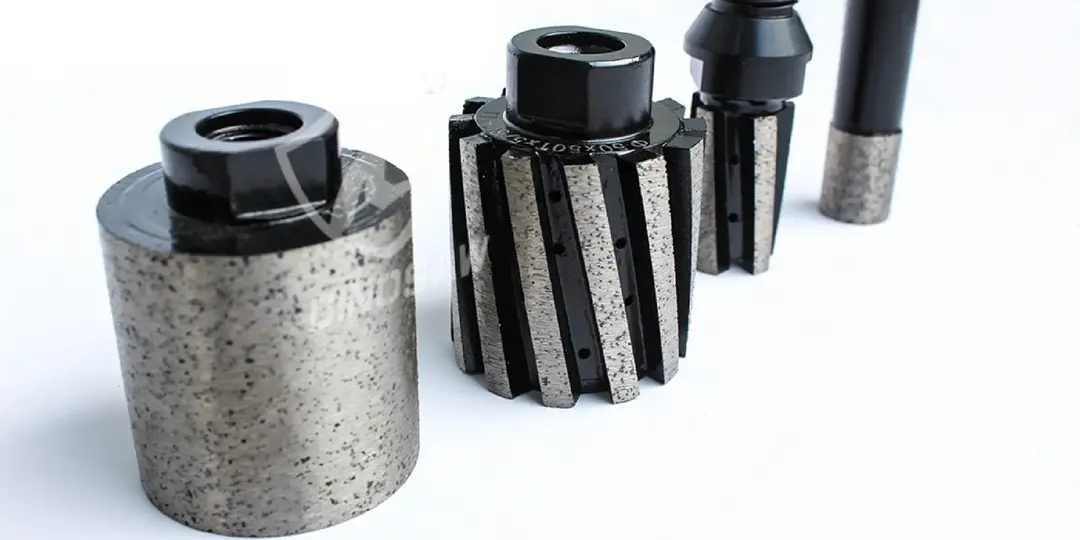

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (14)@1.5x

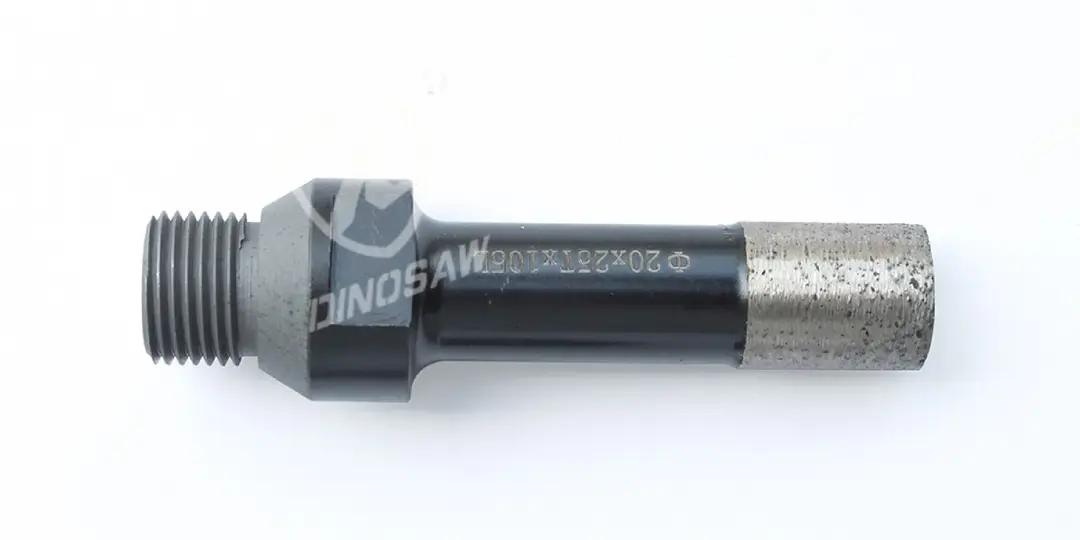

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (8)@1.5x

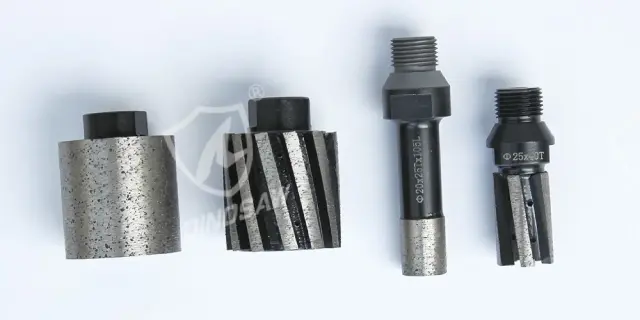

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (6)@1.5x

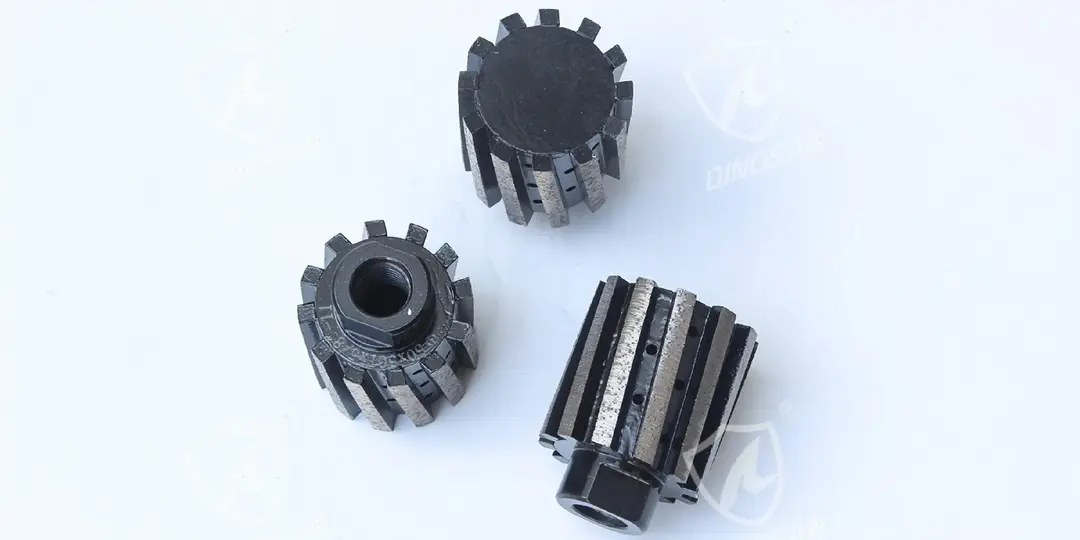

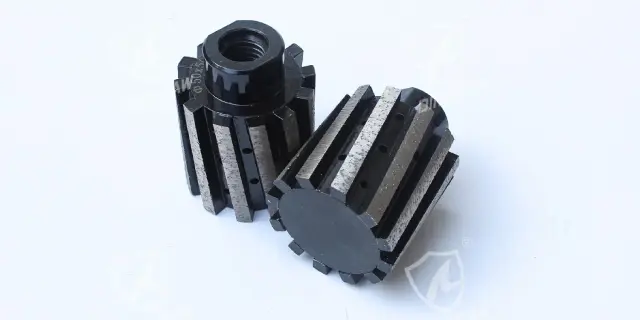

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (26)@1.5x

Marble > Smooth Cutout Cleanup

Marble cuts easily but shows every waviness, swirl, and edge breakout once the sink is installed and the surface is sealed. Uneven inside edges also slow polishing. A stable bond and properly matched grit keep removal smooth and controlled, while center waterfeed reduces drag and heat marks that can stain lighter marbles. You achieve a smoother, straighter inner profile that finishes faster, improves visual quality at the sink flange, and reduces rework on high-end vanity tops.

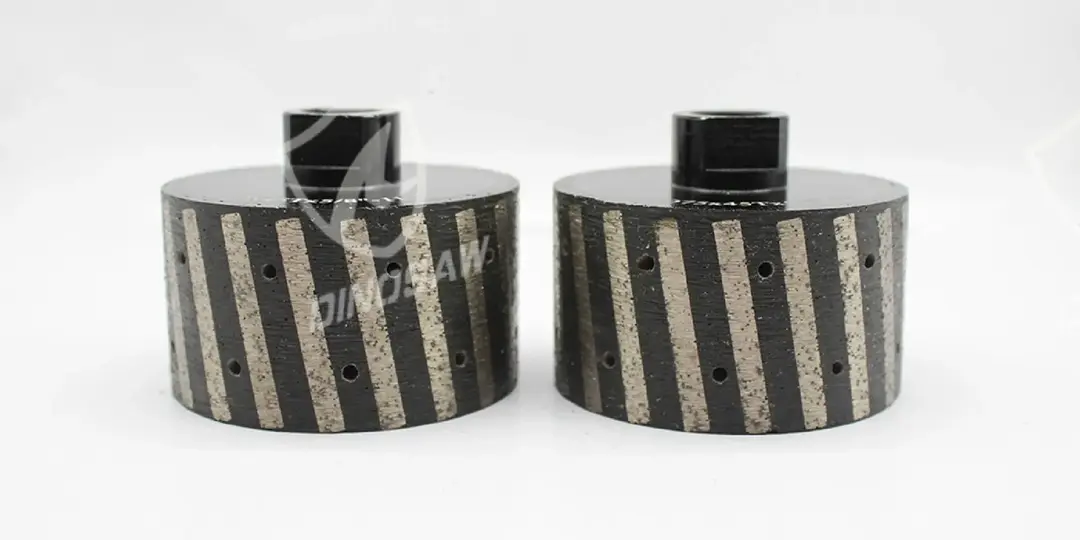

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (57)@1.5x

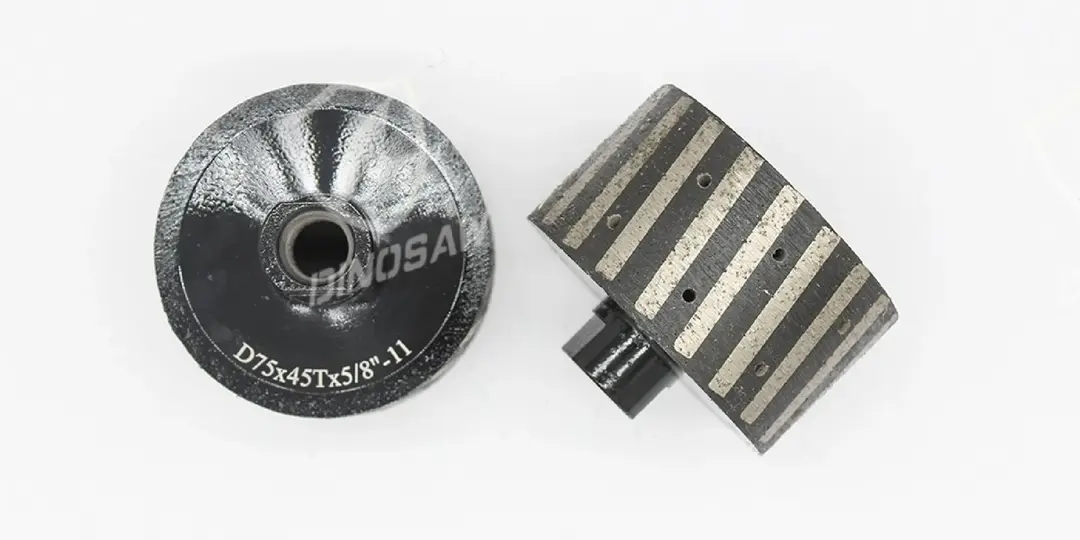

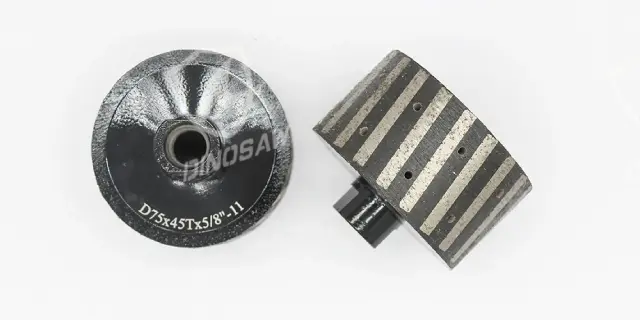

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (52)@1.5x

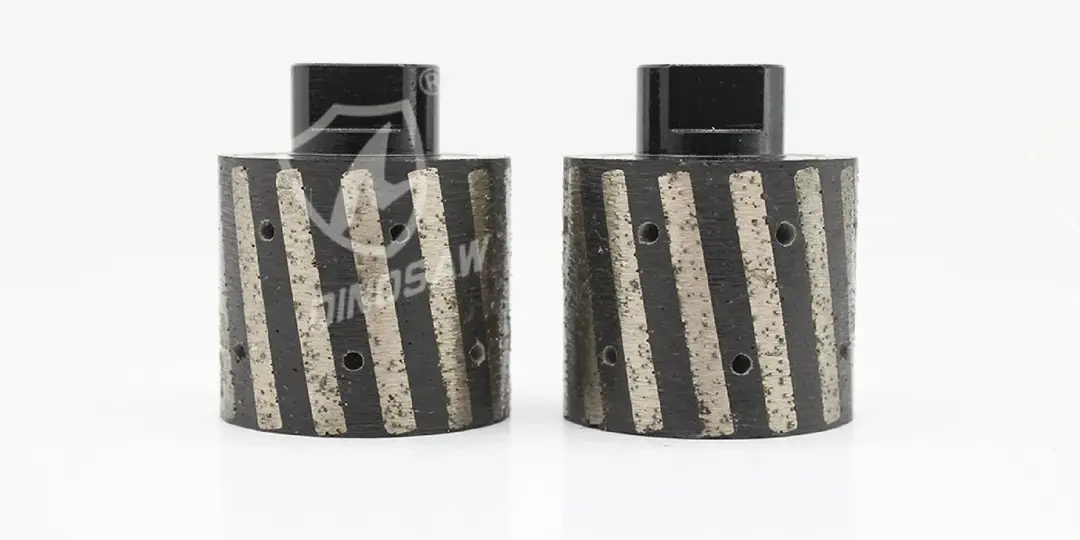

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (40)@1.5x

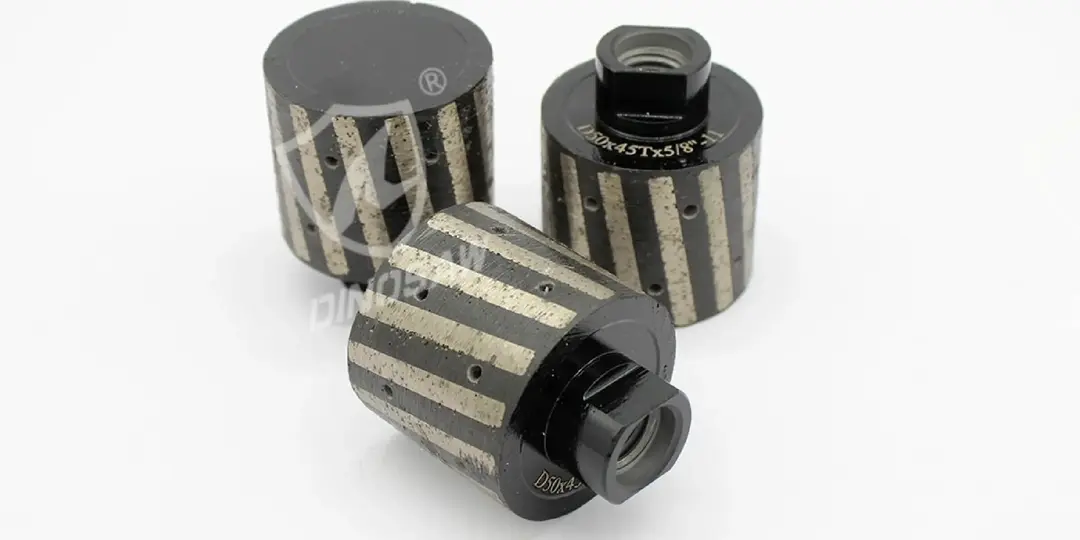

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (45)@1.5x

Engineered Stone > Stock Removal

Engineered stone cutouts often need controlled correction when the routed opening is slightly out-of-round, has step lines, or needs a consistent wall before edge detailing. The rigid drum body, wet operation, and center waterfeed support steady truing, while coarse/medium grits let you manage removal rate without over-cutting corners. Shops bring openings back to spec quickly, standardize rework across operators, and cut the cost per countertop by reducing chip repair and downtime.

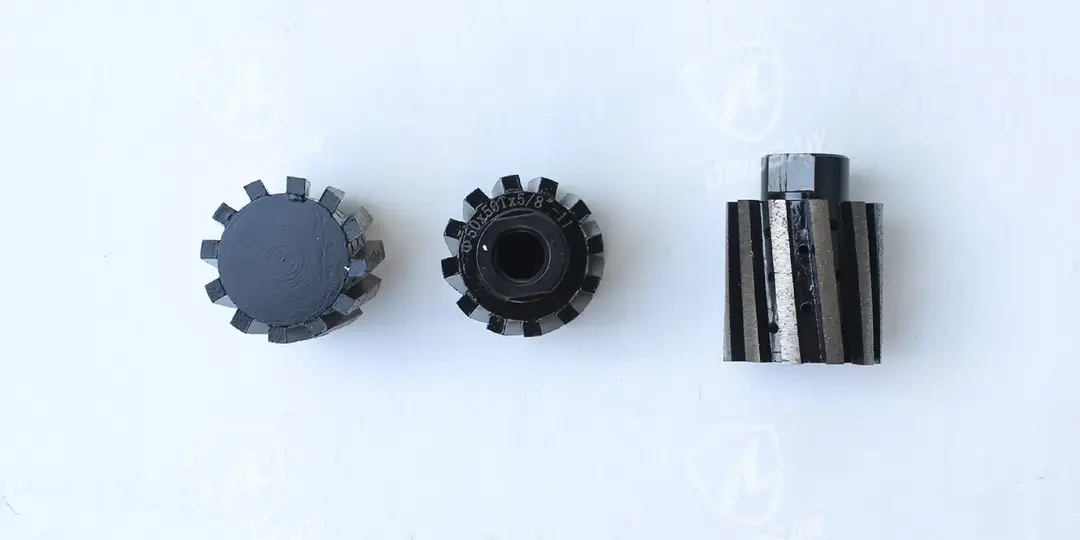

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (25)@1.5x

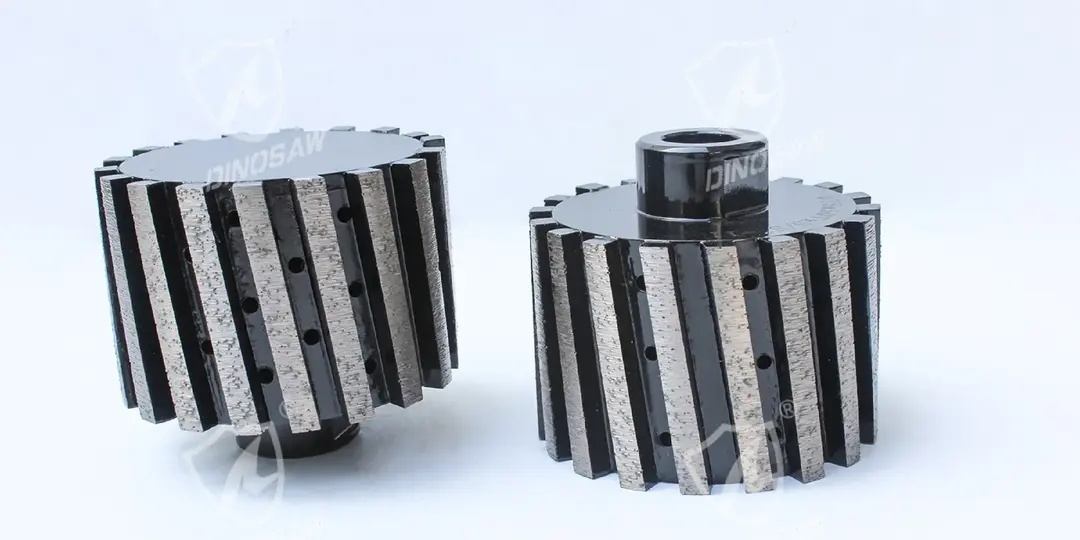

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (31)@1.5x

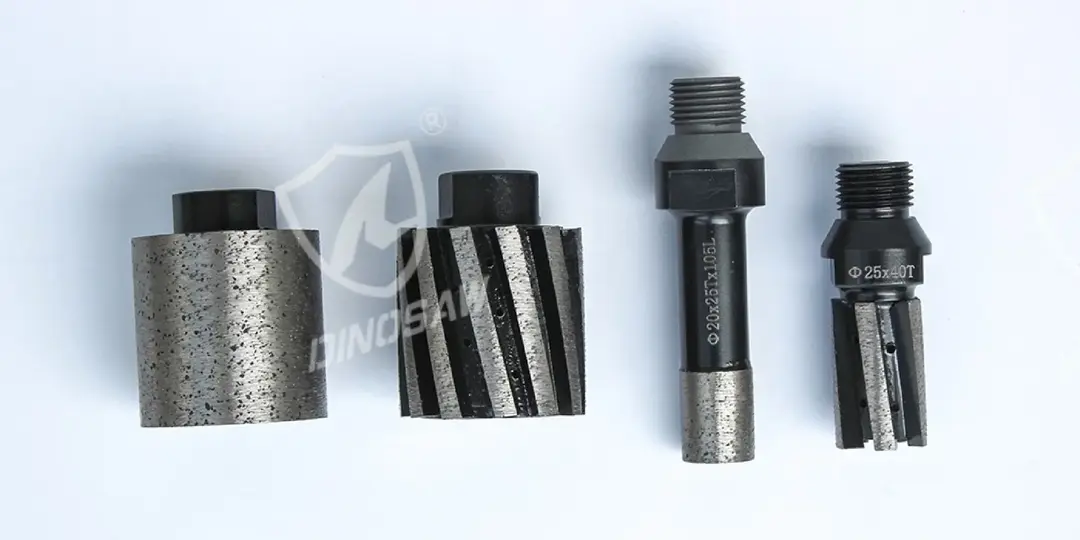

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (5)@1.5x

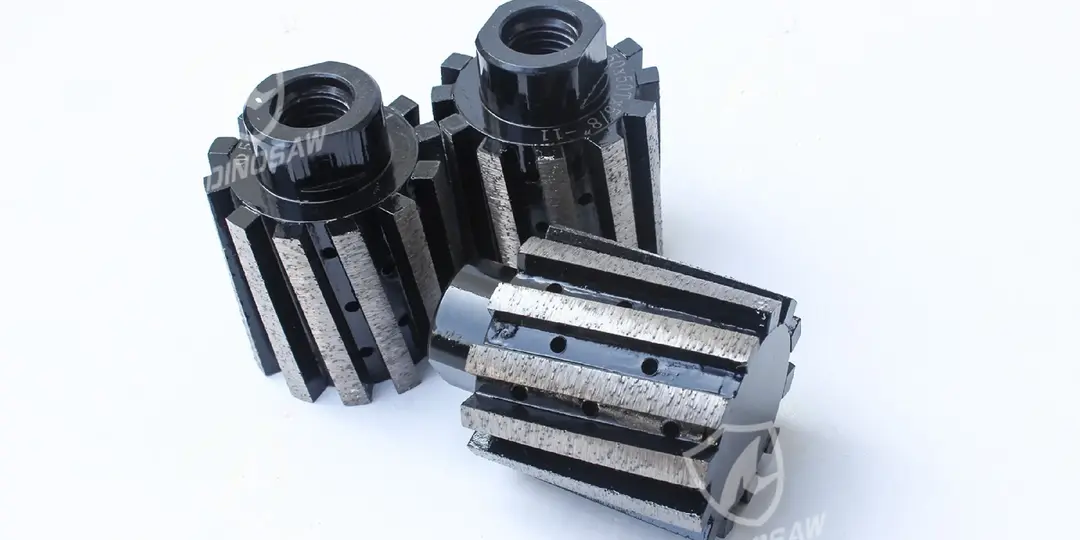

DINOSAW Diamond Drum Wheel for CNC Sink Cutouts (27)@1.5x

Quartzite > Cutout Truing

Quartzite is highly abrasive, so sink cutout truing can become a high-cost step when tools fade, slow down, or start glazing. Heat control is critical. Premium diamonds with a wear-resistant bond maintain cutting points, and center waterfeed stabilizes temperature and clears abrasive fines that accelerate wear. You keep removal rates steady over long runs, reduce tool changes, and deliver consistent inside-edge quality on tough natural stone projects.

Real Grinding Performance & Key Metrics

The DINOSAW diamond drum wheel is the CNC post-routing tool in the sink-cutout chain: after the finger bit mills the internal contour, the drum wheel trues and smooths the wall between routing and final polishing — bringing the opening true and consistent before the polish sequence.

Φ45 / 50 / 75 / 100 mm

Diameter Options

Four drum diameters match cutout sizes: larger drums true wide opening walls fast, smaller drums reach tighter radii.

25–50 mm

Working Height

Working heights from 25 to 50 mm cover standard countertop slabs and built-up edges through the full wall depth.

Center Water

Wet CNC Grinding

Water feeds through the tool center to the grinding face: at the bottom of a deep cutout, external spray cannot reliably reach — center delivery cools the active zone through the full wall height.

3 Interfaces

Spindle Compatibility

1/2" GAS (male), 5/8"-11 (female) and M14 (female) joints match common CNC spindle interfaces — direct mounting protects wall quality.

Applicable materials: Granite, quartz, engineered stone, marble and quartzite.

Typical applications: Sink cutout truing after routing, inside edge grinding, cutout wall refinement and stock removal before polishing on CNC stone machining centers.

Actual tool life varies with material hardness, cutout depth, feed rate and water flow.

Specs and options

Drum wheels are offered at Φ45, 50, 75 and 100 mm with working heights 25–50 mm, in joint options 1/2" GAS (male), 5/8"-11 (female) and M14 (female) — matched to common CNC spindle interfaces. The drum runs wet with center water feed.

Type	Diameter (mm)	Working Height (mm)	Joint
Drum Wheel	45 / 50 / 75 / 100	25 ~ 50	1/2" GAS (Male), 5/8"-11 (Female), M14 (Female), etc.

Core Technology & Tool Structure

Four engineering decisions behind the drum wheel range. The numbered points on the tool diagram correspond to the systems below.

Sink Cutout Finishing Chain

A finished cutout runs four stages: rough or open the sink cutout, finger-bit mill the internal contour to programmed geometry, drum-wheel true and smooth the wall in a CNC pass, then polish the visible internal edge — the drum stage converts a routed opening into a polished-ready surface.

Post-Routing Truing

Finger-bit milling creates the opening geometry; the drum wheel follows with a continuous grinding face to correct routing marks and bring the wall to a smoother, more uniform final contour — routing may leave step marks or rougher wall texture depending on step-down and tool condition, and the drum pass is the correction stage.

Continuous Wall Grinding

The cylindrical grinding surface contacts the full cutout wall instead of removing material with discrete plunge passes: wall truing and refinement run in a single CNC pass, replacing hand cleanup between routing and polishing.

Center Water Delivery

Through-tool water reaches the active grinding zone at depth, supporting cooling and slurry evacuation through the full wall height — the delivery path external spray cannot reliably provide in deep openings.

Diameter Selection Logic

Use the largest drum that clears the required internal radius for faster wall finishing; move to smaller diameters where the cutout geometry tightens — the same selection logic as the finger bit program, one stage downstream.

Full-Depth Wall Reach

25–50 mm working heights reach full wall depth in deep openings without shimming the pass: standard slabs and thicker built-up edges both finish in the drum's working range.

Spindle Interface Range

Three thread standards cover the CNC spindle fleet: 1/2" GAS, 5/8"-11 and M14 interfaces mount directly, protecting runout — and the wall consistency that depends on it.

Finger Bit vs. Drum Wheel

A stage comparison for the sink-cutout chain.

Finger Bit vs. Drum Wheel
Drum Wheel	VS	Finger Bit
True / grind routed wall	Main job	✓ Create internal contour
Cylindrical grinding	Cutting action	✓ Plunge & side milling
Post-routing refinement	Cutout stage	✓ Rough + geometry
Diameter limited	Tight radii	✓ Strong
Smoother pre-polish wall	Surface finish	✓ Routed finish
Still required	Final polishing	✓ Still required

Note: configurations vary by brand and model; actual performance depends on the specific machine, material and working conditions.

The Manufacturer Behind the Drum Wheel Range

DINOSAW is a manufacturer of CNC stone processing machinery, specializing in diamond wire saw machines and CNC stone cutting equipment. With more than 20 years of R&D and manufacturing experience, DINOSAW contributes to industry standards including T/CMES 41001-2025 for CNC wire saw machines, holds 100+ technical patents, and supplies equipment and technical support to customers in 120+ countries and regions. Its manufacturing and management systems are certified to ISO 9001, ISO 14001 and ISO 45001, with CE-compliant machinery for international markets.

DINOSAW CNC stone machinery manufacturing workshop

DINOSAW R&D & ManufacturingMechanical Design · CNC Control Development · Assembly · Testing · Commissioning · Global Delivery

Industry Standard Drafting

DINOSAW contributes to industry standards for stone machinery, including T/CMES 41001-2025 for CNC wire saw machines, as well as standards covering multi-wire saws, combined wire saw machines and five-axis bridge cutting equipment. This work reflects the company’s long-term involvement in machine design, manufacturing, testing and quality control.

20+Years of Stone Machinery R&D & Manufacturing Experience

100+Technical Patents — Covering machine structures, CNC control, cutting systems and stone processing technologies

120+Countries & Regions Served — Equipment, installation and technical support worldwide

CE Compliance & ISO Management Systems

CE: Stone cutting machinery assessed against Machinery Directive 2006/42/EC and relevant EN standards.
ISO: Management systems certified to ISO 9001, ISO 14001 and ISO 45001.

Ordering Requirements & After-Sales Support

DINOSAW provides tool selection per machine and cutout program, with batch supply for CNC fabrication shops.

Machine Fit1/2" GAS / 5/8"-11 / M14

Match thread to CNC spindle before ordering.

Water SupplyThrough-spindle, continuous

Center feed requires through-spindle water delivery.

ProgramSingle truing pass

Drum pass parameters per material class available.

01 · Pre-Shipment & DeliveryMachine configuration, packaging and transport requirements confirmed before dispatch, with factory inspection and documents verified.

02 · Installation & CommissioningOn-site utilities and foundation check, machine positioning, commissioning and acceptance.

03 · Operator TrainingHands-on training covering routine CNC operation and daily checks of blades, spindles, cooling and lubrication.

04 · After-Sales SupportRemote technical assistance, maintenance support and spare parts coordination throughout the machine's service life.

Diamond Drum Wheel Selection & Use FAQ

Common Questions About Diamond Drum Wheel

If the cutout is visible and installed — yes, and here is the division of labor. The finger bit removes material fast by plunge routing, but its stepped passes leave wall marks, slight wander and corner steps that read clearly on a polished sink opening. The drum wheel is the finishing tool: one CNC pass grinds the wall true and smooth, squaring the opening and preparing the surface for polish. Skipping the drum pass means transferring that work to hand grinding — which costs fabricator time per cutout and varies with who does it. The economics: one drum pass per cutout, programmed once, replaces variable manual cleanup on every job. Shops doing visible undermount and vessel openings treat the drum as standard tooling in the cutout program; drop-leaf or hidden applications can skip it. If you buy both tools together, specify the cutout sizes and DINOSAW matches the routing bit and truing drum as a set.

If the cutout is visible and installed — yes, and the division of labor is clean. The finger bit removes material fast by plunge routing, but its stepped passes can leave wall marks and rougher texture depending on step-down and tool condition — texture that reads clearly on a polished sink opening. The drum wheel is the finishing tool: one CNC pass grinds the wall true and smooth, bringing the opening to a consistent final contour before polishing. Skipping the drum pass transfers that work to hand grinding — variable fabricator time on every job. The cutout chain makes the economics visible: one programmed drum pass per cutout replaces manual cleanup, and the routed-to-polished handoff becomes a stored program rather than a craft judgment. Shops doing visible undermount and vessel openings treat the drum as standard tooling in the cutout program; hidden or rough applications can skip it.
