Bridge Saw O&M: Safe Operation & Maintenance

A CNC bridge saw is a powerful asset, but its performance and longevity depend entirely on how it's operated and maintained. Consistent output and a safe working environment are not achieved by accident; they are the result of clear, repeatable routines followed by every operator on every shift.

This playbook provides a straightforward guide for operators and maintenance teams. By focusing on simple Standard Operating Procedures (SOPs), proactive maintenance, and rapid troubleshooting, you can maximize uptime and ensure your machine runs as intended for years to come. The goal is a workflow that is both safe and predictable.

Ask for the O&M quick-start pack for your Bridge Saw

SOPs for CNC Bridge Saw Operation

Implement these simple, jargon-free checklists for daily operations.

• Startup Checklist: Power on main breaker, then machine control. Check coolant level. Home all axes. Verify safety guards and E-stop button are functional.
• Job Changeover: Clear the worktable of debris. Select the next program on the HMI. If required, change the blade, ensuring flanges are clean and bolts are torqued correctly.
• Calibration Check: Once a week, cut a test square and measure for dimensional accuracy and squareness to check for any drift.
• Consumables Check: Before each shift, check the diamond blade for visible signs of damage or excessive wear.
• Shutdown Checklist: Clean the machine, especially around linear guides and the worktable. Empty and clean the coolant filter/tank. Power down the machine, then the main breaker.

Troubleshooting Common Granite Saw Issues

Instead of panicking, follow a logical process for common issues. The following are typical patterns to consider, not definitive diagnoses. Always consult the machine manual and qualified technicians for proper troubleshooting.

• Issue: Edge Chipping

  Symptom: Small flakes breaking off the cut edge.

  Possible Cause: This may be due to a worn blade, incorrect feed/speed, or insufficient coolant.

  Possible Fix: Consider inspecting/replacing the blade, reducing the feed rate, or increasing RPM. Check coolant nozzles for blockage. Prevention: Regular blade inspection is advisable.

• Issue: Inaccurate Cuts

  Symptom: Final dimensions do not match the program.

  Possible Cause: May stem from mechanical wear, an encoder issue, or a loose workpiece.

  Possible Fix: Run calibration check. Ensure workpiece is secure. Inspect linear guides for play. Prevention: Consider weekly calibration checks.

• Issue: Blade Glazing / Burn Marks

  Symptom: Blade polishes instead of cuts; visible burn marks on the stone.

  Possible Cause: May be caused by coolant failure or an incorrect blade for the material.

  Possible Fix: Stop immediately. Check coolant pump and flow. Consider dressing the blade with an abrasive stone. Prevention: Daily coolant level checks are advisable.

• Issue: HMI Freeze

  Symptom: The control screen is unresponsive.

  Possible Cause: Could be a software glitch or an overheating control cabinet.

  Possible Fix: Perform a controlled restart. Check that control cabinet fans/filters are clean. Prevention: Keep the electrical cabinet area clean and cool.

• Issue: Servo Alarm

  Symptom: The HMI displays a servo drive fault. Possible Cause: Could be an overload condition, an obstruction, or a wiring issue. Possible Fix: Power down and remove any physical load or obstruction. Check motor and encoder wiring. Follow manual instructions to clear the alarm. Prevention: Regular scheduled mechanical and electrical inspections can help prevent this.

Bridge Saw Maintenance Schedule

• Daily (≈10 min Operator): Consider wiping surfaces and clearing debris, checking coolant levels, and performing a quick visual blade check, following manufacturer guidance.
• Weekly (20–30 min, Operator): Based on your machine's manual, you may need to clean coolant filters, inspect blade flanges, verify limit switches, test the E-stop button, and wipe linear guides.
• Monthly (60–90 min, Maintenance): Tasks may include refilling lubricant reservoirs, performing a backlash test, checking for spindle bearing noise, deep-cleaning the coolant tank, and dusting electrical cabinets.
• Quarterly (2–3 h, Maintenance): Your vendor may recommend reviewing servo tuning, checking gantry alignment and squareness, inspecting the blade guard for damage, and testing any vacuum systems for leaks. If equipped, camera recalibration may be needed.

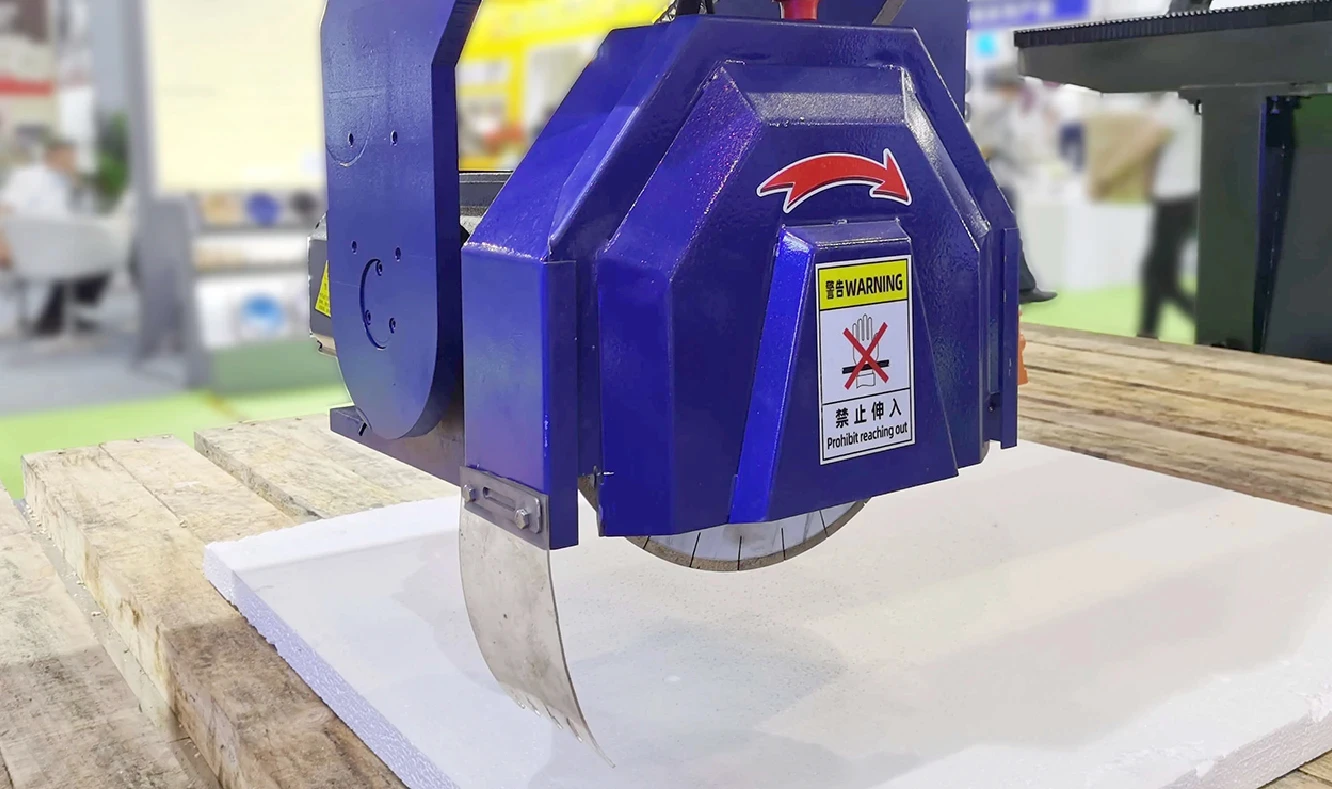

Handling Ceramic Kitchen Tops

For factories focused on standard cuts, a PLC-based system (3, 4, or 4+1 axis) with laser positioning provides a robust, cost-effective solution for straight cuts, miters, and basic slotting. For custom work requiring complex sink cutouts, custom countertops, or 5-axis contouring, a full CNC system is necessary, often paired with options like vacuum suction cups, cameras, milling cutters, or tilting tables to maximize versatility. The best fit always depends on your specific job mix and vendor specifications.

Safety and Compliance in a Stone Shop

Always prioritize safety. Key areas include:

• Silica Dust Management: Wet cutting is essential. Always use appropriate respiratory PPE as required by local regulations (e.g., OSHA).
• Water Handling: Keep floors dry to prevent slips. Manage coolant to prevent bacterial growth.
• Lockout/Tagout: Follow strict LOTO procedures during any maintenance or blade change.
• Access Control: Ensure all safety guards and interlocks are functional and never bypassed.

FAQs: Operations & Maintenance

How do I know a diamond blade is worn on a CNC bridge saw?

Signs may include slower cutting speeds, chipping, or a higher load on the spindle motor. Always confirm wear against the manufacturer’s guidelines.

What operator mistake causes rework most often on stone bridge saws?

A common issue may be insufficient workpiece securing. Always follow your shop’s specific SOPs and the machine manual to ensure slabs are held firmly.

Can tap water be used in the coolant on a granite bridge saw?

While tap water is often used, local water quality (e.g., high mineral content) may affect maintenance. It is best to review vendor recommendations before changing any procedures.

How often to clean a CNC bridge saw-daily or weekly?

Adhering to a schedule is key. Daily wipe-downs of critical surfaces and weekly filter checks are advisable, but always defer to your vendor's specific maintenance guidance.
