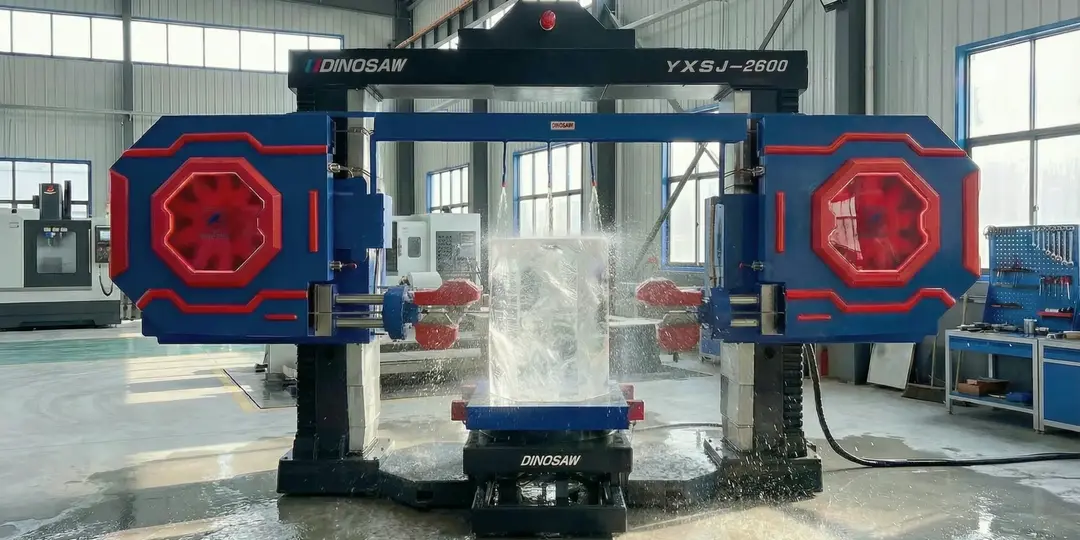

CNC Diamond Wire Saw Machine for 3D Stone Profiling

Yes. Dinosaw CNC wire saw machines are designed for brittle, high-hardness materials such as quartz glass, where cracking and edge damage are common problems.

Why Dinosaw works for quartz glass

Quartz glass is sensitive to concentrated force and thermal stress. Dinosaw uses continuous diamond wire cutting with water cooling, which helps distribute cutting force more evenly and reduces localized stress at the cutting edge. This cutting approach is commonly used when blade cutting causes micro-cracks or unpredictable edge breakage.

Typical situations where buyers choose Dinosaw

• Quartz glass parts crack during blade cutting

• Edge chipping leads to low usable yield

• Material cost is high and scrap is unacceptable

Limits to understand

This process focuses on stability and yield. Optical-grade quartz glass or ultra-thin parts may still require secondary finishing.

What to confirm before deciding

Confirm quartz glass thickness, brittleness, and whether reducing cracking is more important than maximizing cutting speed.

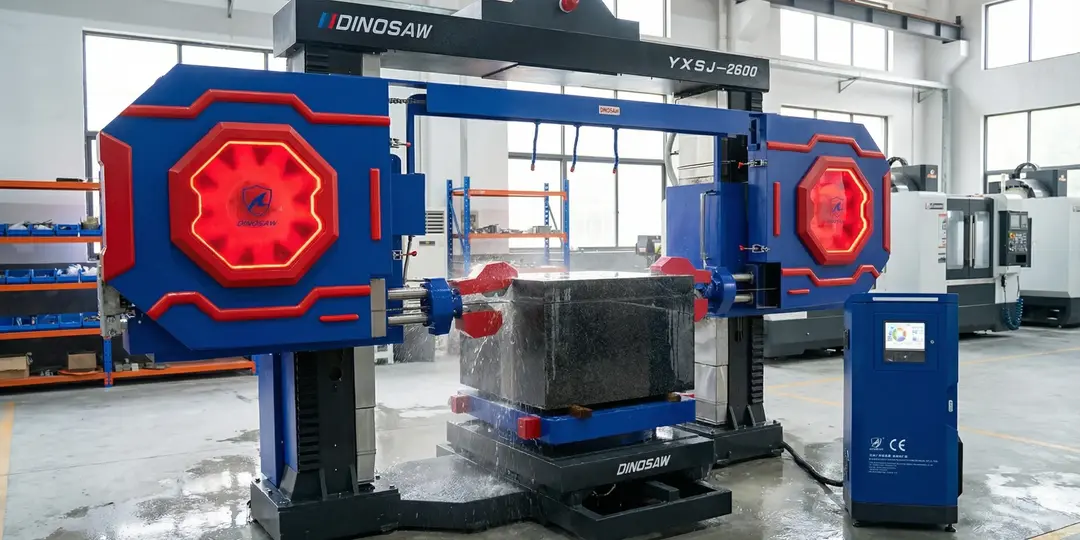

Yes. Dinosaw CNC wire saws are well suited for cutting thick or solid quartz glass blocks with stable dimensional control.

How Dinosaw maintains accuracy on thick blocks

Dinosaw machines rely on CNC-controlled continuous cutting rather than segmented passes. This helps avoid cumulative error during deep cuts, which is a common issue when thick quartz glass is cut step-by-step with rigid tools.

Typical buyer scenarios

• Thick quartz glass blocks deform or crack during deep blade cuts

• Dimensions drift after long cutting paths

• Re-alignment between cuts causes inconsistency

Where this machine is not intended

It is not designed for micron-level wafer slicing or ultra-thin quartz sheet production.

What to confirm before deciding

Confirm maximum block thickness and whether ±1 mm accuracy is acceptable for downstream assembly or processing.

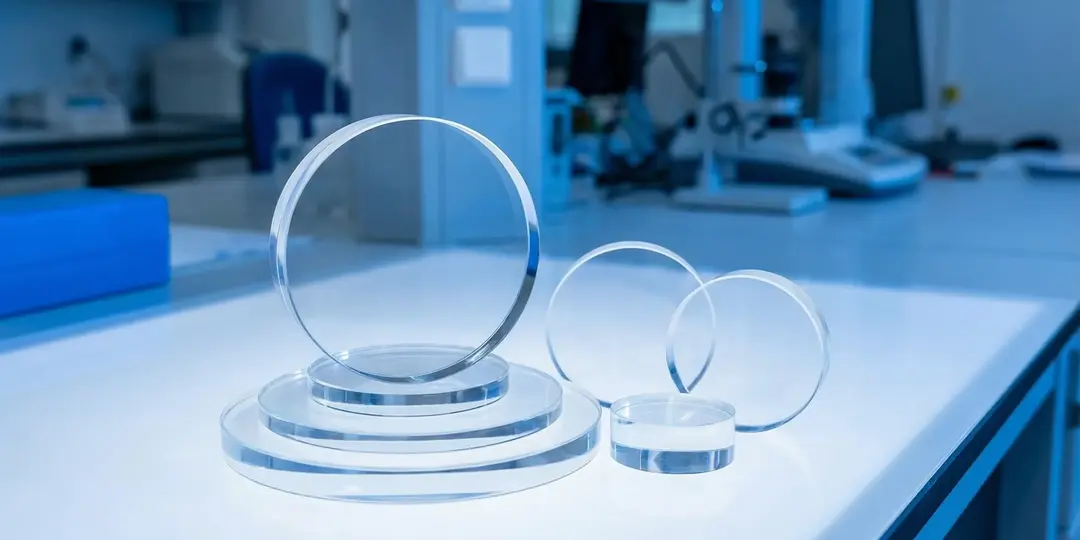

For most industrial quartz glass applications, yes. Dinosaw machines are positioned to deliver ±1 mm accuracy for functional and structural components, not optical precision parts.

What this accuracy level is designed for

This accuracy supports:

• Stable dimensional results

• Repeatable component fitting

• Consistency along straight and curved cutting paths

Dinosaw focuses on dimensional reliability rather than ultra-fine surface finishing.

Typical buyer scenarios

• Parts must fit into mechanical assemblies

• Small dimensional drift causes installation problems

• Current process lacks repeatability

Where it may not be enough

Optical, laboratory, or ultra-precision components with micron-level tolerance requirements.

What to confirm before deciding

Clarify whether your tolerance requirements are defined by assembly fit or by optical performance.

Yes. Dinosaw CNC wire saw machines are suitable for cutting hard, brittle industrial ceramics and refractory materials where fracture risk is high.

Why Dinosaw is used for ceramics and refractory blocks

These materials are prone to cracking under concentrated force or thermal stress. Dinosaw’s wire saw cutting method reduces localized loading and avoids heat-affected zones, making it more predictable for brittle materials.

Typical buyer scenarios

• Ceramic blocks crack during blade cutting

• Refractory parts break unpredictably near the end of the cut

• Material loss is expensive and hard to recover

Practical trade-off

Cutting speed is lower than aggressive blade cutting, especially on very hard materials.

What to confirm before deciding

Confirm material hardness, block size, and whether process stability matters more than cutting speed.

Wire saw cutting prioritizes material integrity and dimensional stability. Dinosaw machines are typically chosen when preserving usable material matters more than cutting speed.

Practical difference buyers usually notice

• With Dinosaw wire saw cutting

  • Lower fracture risk

  • More stable geometry

  • Higher usable yield

• With blade cutting

  • Faster removal

  • Higher risk of chipping and breakage

  • Greater mechanical shock

Typical buyer scenarios

• High-value ceramic or refractory blocks

• Scrap rate is already a pain point

• Rework and breakage slow down production

What to confirm before deciding

Decide whether yield, stability, and predictability outweigh maximum cutting speed in your process.

Yes. Dinosaw CNC wire saw machines are suitable for ceramic and refractory parts with curved or irregular geometries, especially when segmented cutting causes dimensional drift or cracking.

Why this works for irregular shapes
Dinosaw uses CNC-controlled continuous wire cutting. The wire follows non-linear paths without stopping or repositioning the workpiece, which helps maintain dimensional consistency along curves and transitions. This reduces cumulative error that often appears when parts are cut in multiple straight segments.

If curved ceramic parts lose accuracy after repositioning, or refractory components crack near corners and profile changes, this cutting approach is often chosen to improve predictability.

Limits to understand

• Cutting parameters still need to be set correctly

• Wire condition and cooling stability affect final results

What to confirm before deciding
Confirm whether your parts require continuous curved cutting rather than straight or segmented cuts.

Because Dinosaw wire saw cutting avoids heat damage and reduces fracture risk on hard or brittle materials.

How wire saw cutting differs from thermal cutting

• With Dinosaw wire saw cutting

  • Mechanical cutting with water cooling

  • No heat-affected zone

  • Lower thermal stress on brittle materials

• With thermal cutting

  • High localized heat

  • Risk of micro-cracks and distortion

  • Less predictable results on brittle parts

If thermal cutting already causes cracking, distortion, or scrap near the end of the cut, wire saw cutting is often selected to stabilize results.

Trade-off to understand
Thermal cutting can be faster, but material integrity is often compromised on brittle or heat-sensitive parts.

What to confirm before deciding
Decide whether dimensional stability and crack prevention outweigh cutting speed in your process.

Yes. Dinosaw machines are typically run at controlled speeds when cutting very hard or brittle materials to maintain stability and protect the wire.

Why speed control matters
Excessive cutting speed increases cutting resistance, which can lead to:

• Sudden wire breakage

• Edge chipping on brittle parts

• Unstable cutting behavior

If faster cutting already leads to scrap or rework, slowing the process often improves overall yield and consistency.

What slower, controlled cutting achieves

• Higher usable yield

• More predictable results

• Longer wire life

What to confirm before deciding
Confirm acceptable cycle time and whether yield loss costs more than slower cutting.

Wire selection, cutting speed, cooling, and tension control have the greatest impact on wire breakage on Dinosaw machines.

Main causes of wire breakage

• Incorrect wire type for the material

• Excessive cutting speed on hard blocks

• Insufficient or unstable cooling

• Worn or misaligned guide wheels

If wire breakage happens repeatedly, it usually points to a setup mismatch rather than a machine defect.

How Dinosaw helps reduce breakage risk

• Stable tension management

• Compatibility with material-specific wire types

• Emphasis on controlled cutting parameters

What to confirm before deciding
Confirm material type, recommended wire specification, and whether operators can maintain stable parameters.

It is better suited for precision components and controlled batch production rather than high-speed mass cutting.

Where Dinosaw fits best

• Precision industrial parts

• High-value quartz glass, ceramic, or refractory components

• Applications where dimensional stability and usable yield matter

Where it is less suitable

• Low-value materials

• Extremely high-throughput rough cutting

• Processes driven purely by maximum speed

If your process already suffers from breakage, rework, or dimensional inconsistency, this type of cutting is often chosen to stabilize output rather than push volume.

What to confirm before deciding
Clarify whether your production goal is precision and predictability, or maximum cutting speed and volume.
