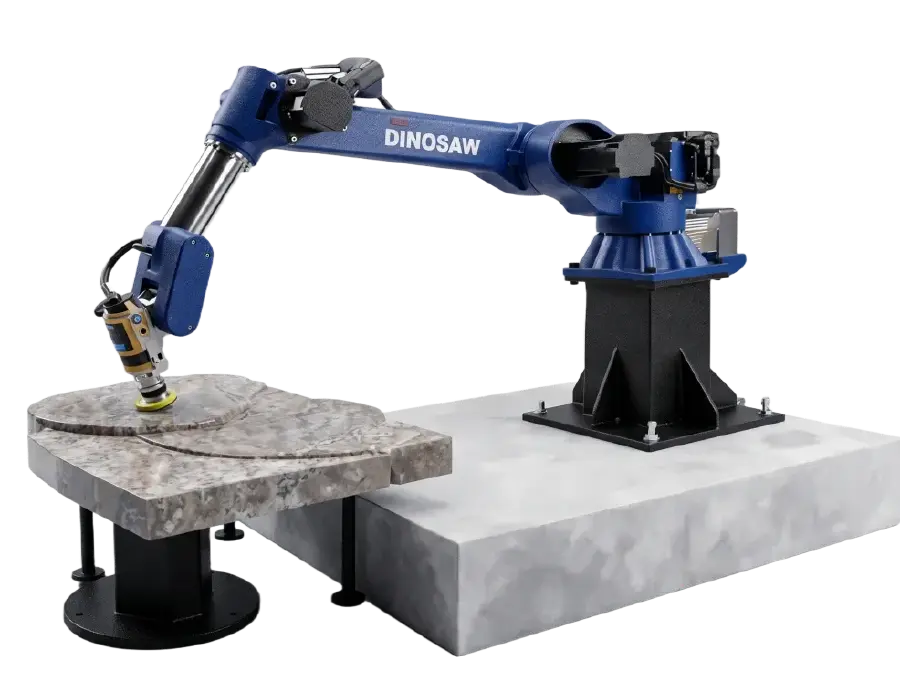

6 Axis Robot Arm for Stone Polishing & Grinding

This robotic polisher performs best on complex surface geometries, not on large flat slabs.

It is commonly used for:

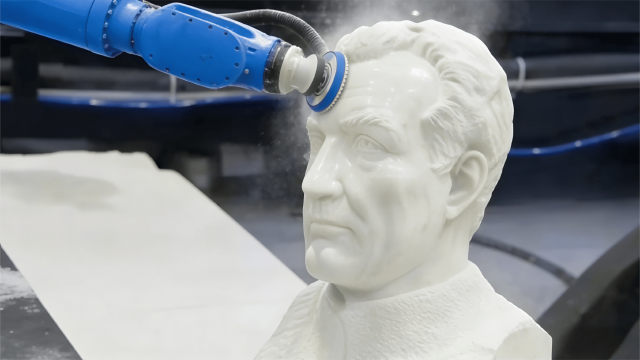

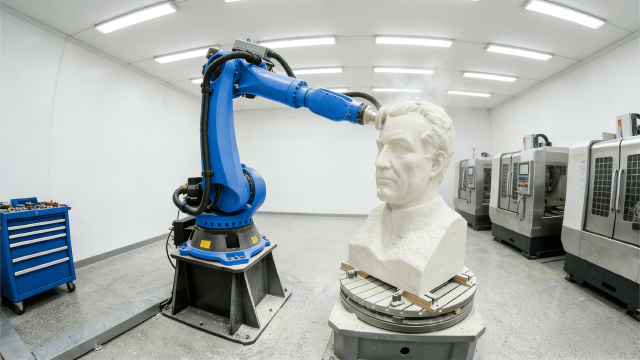

• Sculptures and statues with full 3D contours

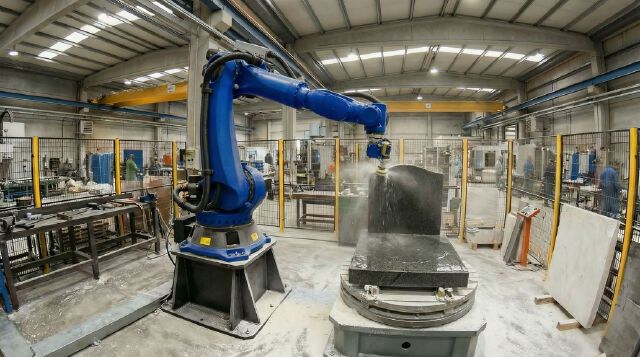

• Monument elements such as curved tombstone fronts, letters, and ornaments

• Architectural stone components with rounded edges or sculpted surfaces

• Decorative stone parts with relief patterns or irregular forms

The robot keeps the polishing head aligned with the surface at all times, which is exactly what makes it effective on shapes that are difficult to polish evenly by hand.

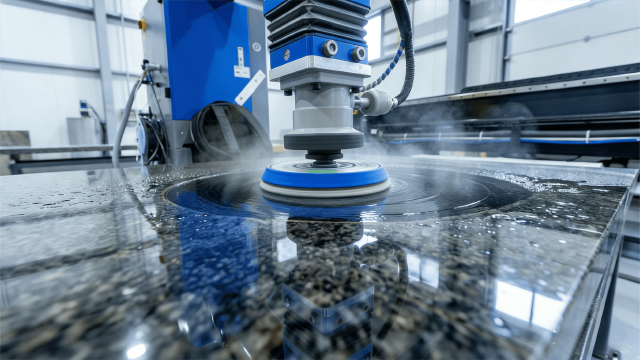

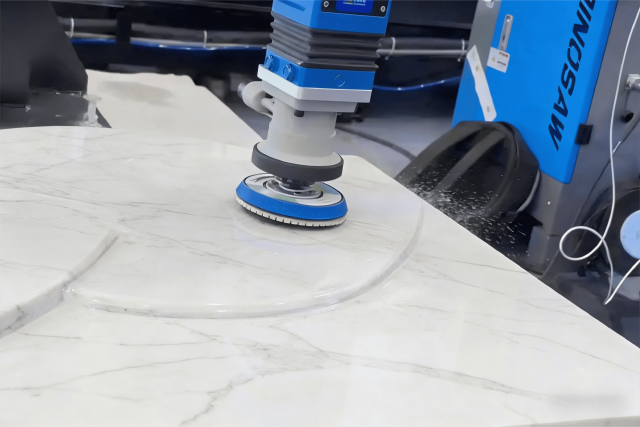

The robotic arm can polish a wide range of stone materials, including marble, granite, limestone, sandstone, travertine, bluestone, onyx, jade stone, engineered stone, and artificial quartz.

In practice, different materials mainly affect tool selection and polishing time, not whether the robot can be used. Softer stones such as marble, limestone, and travertine allow faster polishing and finer surface refinement. Harder stones like granite and quartz require more controlled pressure and longer polishing cycles but are commonly processed for shaped monuments and decorative elements.

The real improvement is not just automation, but repeatable surface quality on complex shapes.

With manual polishing, curved or sculpted surfaces often show uneven gloss, missed areas, or inconsistent pressure marks. The robotic arm follows a programmed path with controlled force and tool orientation, ensuring that every area of the surface receives the same polishing treatment.

In production, this leads to:

• More uniform gloss across curved surfaces

• Less rework and touch-up

• Stable results when producing multiple identical pieces

Once the polishing program is set, quality no longer depends on operator fatigue or skill differences.

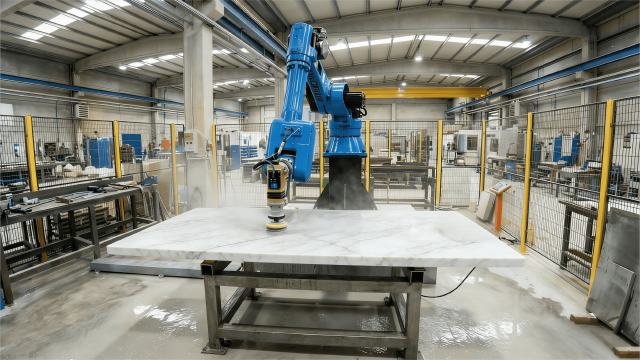

For flat slabs, traditional flat polishing machines remain the most efficient choice.

For shaped stone products, the robotic arm clearly performs better. For example:

• Curved marble tombstone fronts are polished evenly without hand correction

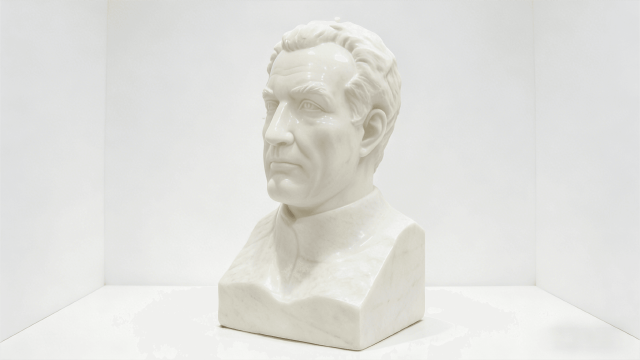

• Granite sculptures achieve consistent surface finish across multiple copies

• Decorative stone columns and relief panels can be polished after CNC carving without manual blending

In these cases, the robotic arm bridges the gap between CNC shaping and final surface finishing, reducing manual labor while keeping surface quality consistent across complex stone products.

It can handle both, but it delivers the most value when the same shape is repeated.

For custom or one-off pieces, each new product requires programming and testing, which takes time and skilled operation. This is manageable if custom work is frequent and surface quality requirements are high.

For batch production of shaped stone products—such as repeated sculptures, identical curved monument parts, or series of decorative elements—the advantage becomes much clearer. Once the program is finalized, the robot can polish the same shape repeatedly with stable quality and predictable cycle time, something that is very hard to maintain with manual polishing.

Programming is a real consideration and should not be ignored.

For a new shape, the polishing path must be adjusted to match:

• Surface geometry

• Tool size and contact area

• Material hardness and finish requirement

This means there is a setup and learning cost when switching products. Workshops with CAM or robotic programming experience will adapt faster. For operations without technical staff, training or external support is usually required. Once the program is established, however, daily operation becomes straightforward and repeatable.

The robotic arm supports a wide range of stone polishing tools, depending on the mounting system and application.

Commonly used tools include:

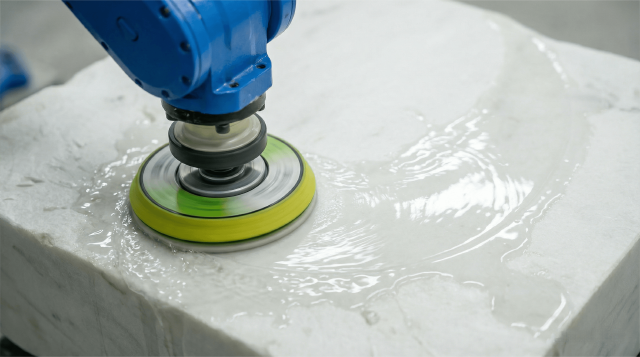

• Diamond polishing pads for curved and sculpted surfaces

• Abrasive wheels and flexible polishing heads

• Specialized tools for concave or convex areas

Tool selection is usually based on material (marble, granite, quartz, etc.) and the desired surface finish. The robot itself provides the movement and angle control; surface quality is achieved through the correct combination of tool, speed, and pressure.

Consistency is one of the robot’s strongest advantages.

Once the polishing parameters and path are fixed, the robot repeats the same motion with the same contact angle and pressure on every piece. This results in:

• Uniform gloss on curved surfaces

• Consistent texture across repeated products

• Minimal variation between pieces in the same batch

This is especially important for projects like monument sets, architectural stone series, or decorative components where visual consistency matters.

This solution is best suited for workshops that:

• Regularly polish shaped or curved stone products

• Produce sculptures, monuments, or decorative stone components

• Want to reduce dependence on skilled manual polishers

• Have, or are willing to develop, basic programming capability

It is less suitable for operations focused only on large flat slabs or simple edge polishing. The robotic arm is most valuable when surface geometry is complex and consistency across pieces is required.

Three ways, and they compound. Time: the robot runs continuous programmed cycles without fatigue breaks — shaped-piece throughput holds constant from first hour to last, where manual output sags late in a shift. Consistency: controlled pressure and stored paths standardize the finish across the batch — pieces pass inspection the first time instead of returning to the polish bench, and the ±0.06 mm robotic positioning repeatability keeps every piece on the same programmed toolpath. Labor structure: skilled polishers move from repetitive grinding to setup and inspection, covering more machines with the same crew. The positioning repeatability is the mechanism for path consistency — the final gloss still depends on the full process of path, pressure, abrasives and stone condition, which is exactly why the cell controls them together.

They solve different bottlenecks, and the choice is the production pattern. The DP-01 vision polisher wins on high-mix work: its camera photographs the work area and the operator drags polishing outlines onto the real image, so different monument sizes and outlines share one batch; its 8-station automatic tool changer runs rough-to-polish without stopping; mixed-size tombstone orders are its home ground. The JXS robot wins on complex geometry repetition: six-axis tool orientation follows curved bowls, bevels and multi-angle surfaces the DP-01's top-access approach cannot reach, and constant pressure on a stored path serves repeated shaped products — sink lines, memorial shapes that repeat for months, sculptural series. A practical split many factories use: DP-01 for high-mix tombstone batches with automatic tool change; JXS for the repeating curved and multi-angle products where surface access and contact control matter more than visual repositioning. If a product needs both, that is a two-machine answer.

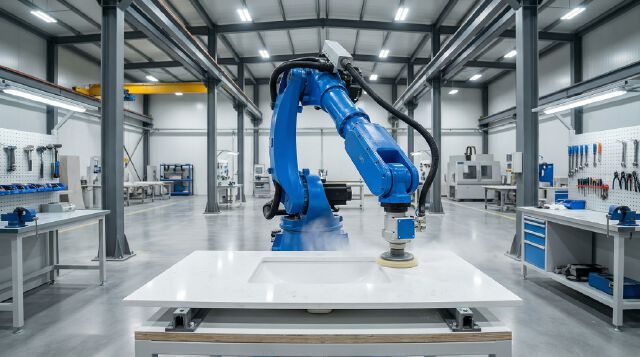

Yes — curved inside surfaces are the six-axis configuration's core territory. The arm orients the polishing head into bowl geometry and works the curved surface along the programmed path with controlled contact pressure, covering the inside radius where a flat-bed polisher cannot reach. The working envelope (1721 mm radius) fits vanity and kitchen sink sizes, and the piece fixtures at the cell with the bowl accessible to the tool. For production sink lines, the stored program runs the same bowl geometry piece after piece; for one-off sculptural interiors, the surface path is programmed per model. The limiting question is access — very deep or narrow-necked geometries need a fixture and reach check, which DINOSAW verifies against the drawing before quoting.

No — the JXS3670 configuration uses manual tool changes, planned between grit stages rather than automatic swapping. The batch sequence is organized around this: rough grinding runs its tool, the operator changes to the next abrasive stage, the stored program for that stage resumes — with changeover planned into the cycle rather than hidden inside it. For shops comparing against the DP-01's 8-station automatic tool changer, this is a real configuration difference: if your production changes tools many times per shift across varied products, the DP-01's automatic change earns its place; if your production runs staged batches of one shaped product, the JXS's manual change fits a simpler, lower-cost cell. Tool-change automation on the robot is a project option to discuss if the batch logic demands it.
