Diamond Wire Saw for Concrete, Metal and Stone Cutting

DINOSAW diamond wire saws cut through almost all hard materials. Our wire saw options range from 0.35mm to 12mm in diameter, manufactured for different applications with customizable configurations. Engineered for universal compatibility, our diamond wire saws work with all wire saw machines on the market. Our cutting solutions excel in cutting concrete, marble, granite, metal, stone, graphite, fiberglass, refractory bricks, quartz glass, alumina ceramics, steel, and various alloys.

0.35–12 mmFrom precision micro-wire to heavy quarry and demolition cutting

Application-MatchedBead, spacing and wire construction configured by material and machine

Stone → MetalPrograms for stone, concrete, refractory and metal sectioning

Applicable Materials

Granite, marble, concrete, refractory materials and metal

Certifications & Credentials

CE Certified · ISO 9001:2015 · Industry Standard Drafting Participant · 120+ Countries & Regions Served

Get a Custom Quote

Dinosaw machine Diamond Wire Saw - Premium Diamond Cutting Tools

Applications Performance Specs Technology Comparison Manufacturing Support FAQ

Compatible Materials & Products

Specialized Cutting Wire Saw for Every Material Challenge

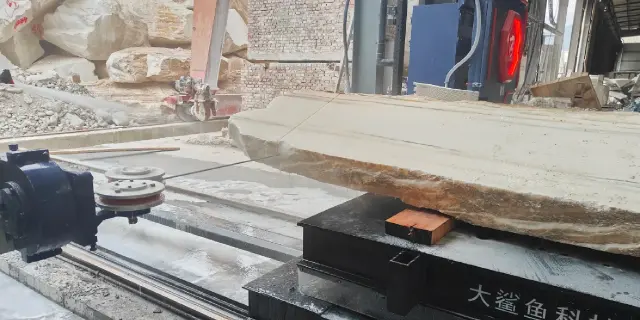

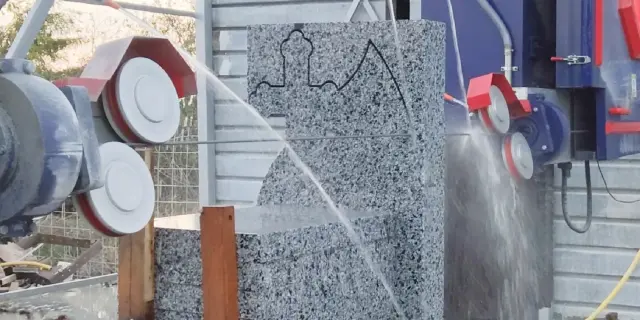

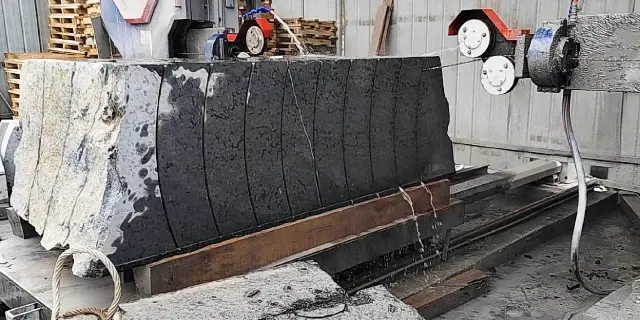

Diamond Wire Saw for Granite

Granite's exceptional durability and timeless appearance make it ideal for tombstones and memorial stones that must withstand generations of weathering. Creating these memorial pieces demands precision diamond wire cutting to achieve dignified designs while maximizing the use of premium stone blocks. DINOSAW sintered diamond wire saws excel in granite processing through specialized diamond beads with optimized metal bond matrix for extreme hardness. Our 11mm diameter wires with 36/40 grit diamond concentration provide the aggressive cutting power needed for dense granite varieties. The spring connection type ensures flexibility and shock absorption when cutting through variable-density materials and natural fissures often found in granite blocks. Memorial stone fabricators report 25% faster production cycles and significantly higher quality when using our diamond wire technology. The specialized bead spacing and diamond concentration ensure clean, precise cuts even through the hardest granite types, allowing for easier finishing and more intricate design capabilities in the memorial industry.

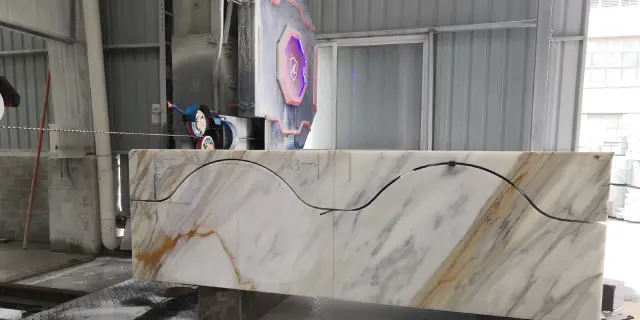

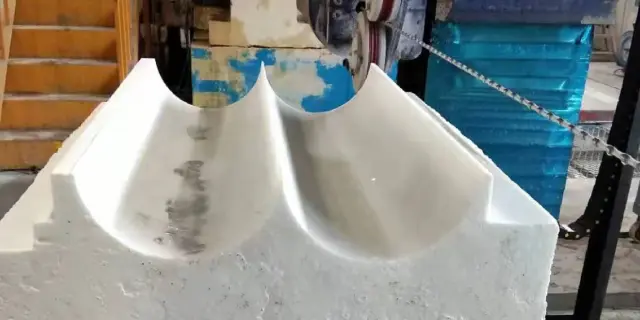

Diamond Wire Saw for Marble

Marble's natural beauty and elegant veining patterns make it the top choice for luxury countertops and decorative slabs. However, its delicate structure demands specialized wire saw stone cutting solutions to preserve unique patterns and prevent damage during processing. DINOSAW diamond wire saws feature optimized bead composition specifically engineered for marble applications. Our electroplated diamond wires with 40/50 grit diamond particles deliver the ideal balance between cutting speed and surface quality, achieving 1.8-2.0㎡/h cutting efficiency with minimal kerf width. The plastic injection connection type provides the perfect stability for precision marble cutting while reducing vibration. For premium marble varieties like Calacatta and Statuario, our fine-grit diamond wires with 60/80 diamond concentration produce exceptionally smooth surfaces that require minimal finishing. The result is flawless marble countertops and decorative slabs with up to 30% improvement in material yield compared to traditional cutting methods.

Diamond Wire Saw for Refractory

Refractory materials such as firebricks, ceramic blocks, and high-temperature insulation are critical components in industrial furnaces, kilns, and thermal equipment. The extreme hardness and temperature resistance of these materials present significant cutting challenges, requiring specialized diamond wire technology for precise fabrication and maintenance. DINOSAW diamond wire saws for refractory applications feature brazed diamond beads with specialized formulations designed to withstand the abrasive nature of alumina, silica, and other refractory compounds. Our 8-10mm diameter wires with 40/50 grit diamond concentration provide the aggressive cutting power needed for these ultra-hard materials. The rubber connection type ensures stability while absorbing the vibration that occurs when cutting through the varied density and occasional crystalline structures in refractory products. Industrial furnace manufacturers and maintenance contractors report up to 40% reduction in downtime when using our specialized refractory cutting solutions. The precise cutting capabilities allow for complex shapes and tight-fitting joints that significantly improve thermal efficiency and extend service life of industrial heating equipment. Even the most challenging materials like silicon carbide and zirconia can be effectively processed with minimal material waste.

Diamond Wire Saw for Metal

Industrial metal structures and components often require precise cutting during decommissioning, modification, or specialized manufacturing processes. Traditional thermal cutting methods introduce heat distortion and hazardous conditions, particularly in sensitive environments. DINOSAW diamond wire saw for metal features specialized electroplated diamond beads with proprietary metal bond formulations designed specifically for ferrous and non-ferrous metals. Our 7-9mm diameter wires with 30/40 diamond concentration deliver efficient cold-cutting performance that eliminates heat-affected zones and prevents material distortion. The spring+rubber hybrid connection type provides both flexibility and stability required for metal cutting applications, especially when cutting through variable thickness sections. Industrial applications benefit from the system's ability to make precise cuts through complex metal assemblies while maintaining structural integrity of surrounding components. With cutting speeds of 0.5-0.8㎡/h for steel, our wire saw for metal technology has proven particularly valuable in nuclear decommissioning projects, oil and gas facility modifications, and precision manufacturing environments where flame-free cutting is essential.

Real Cutting Performance & Key Metrics

DINOSAW diamond wire is an application-configured cutting system: 0.35 to 12 mm diameters spanning micro-wire precision through heavy quarry duty, with bead specification, wire body construction and joint quality matched to the actual machine and material — broad machine coverage, configured per system.

0.35–12 mm

Wire Diameter Range

The full wire spectrum: micro-wire at 0.35 mm for precision cutting through heavy quarry and construction wire at 12 mm — one product family across wire saw classes.

4 Classes

Application Classes

Precision micro-wire (0.35–2 mm), production wire (7–11 mm) for CNC and construction, and heavy-duty 12 mm for quarry and demolition — each class engineered for its duty.

Custom Config

Machine-Matched Specification

Wire length, diameter, bead spacing and joining are configured per machine system: quarry wires, CNC wire saws and wall saws each receive their own construction.

Controlled Joint

Joining Quality

Every closed-loop wire depends on its joint: joining method, dimensional consistency and finishing determine whether the connection survives repeated pulley bending without becoming the first failure point.

Application material classes: Stone (granite, marble), concrete, refractory materials and metal.

Typical applications: Quarry block extraction, CNC contour cutting, demolition and construction cutting, refractory dismantling and metal sectioning.

Actual wire life varies with material hardness, machine parameters, water condition and operator practice. Machine fit cannot be assumed — wire is configured per system.

Specs and options

Diamond wire is configured per application: diameter from 0.35 mm (precision micro-cutting) to 12 mm (heavy quarry and construction), with bead specification, spacing and wire construction per material class and machine system. Broad machine coverage is provided through per-system configuration, not universal construction.

Diamond wire saws for different materials, manufacturing processes, and formulations vary significantly in performance and lifespan. If you're unsure about selecting the right diamond wire saw for your specific application, please contact our technical team for professional consultation.

Product Series

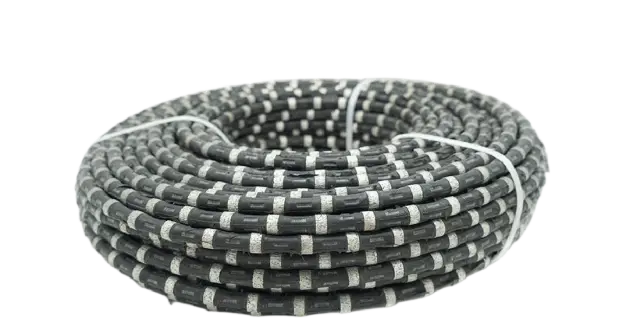

Electroplated & Vacuum brazed diamond wire saw - Precision Cutting Series

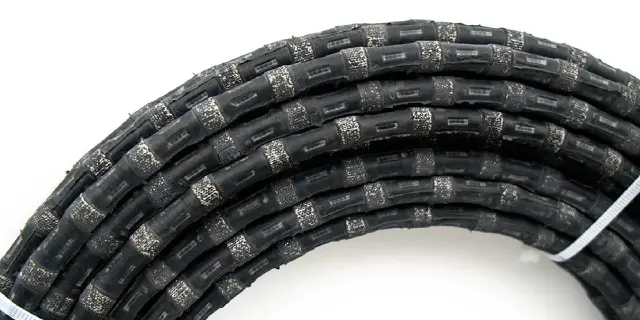

Diamond wire saw for granite - Stone Quarrying Series

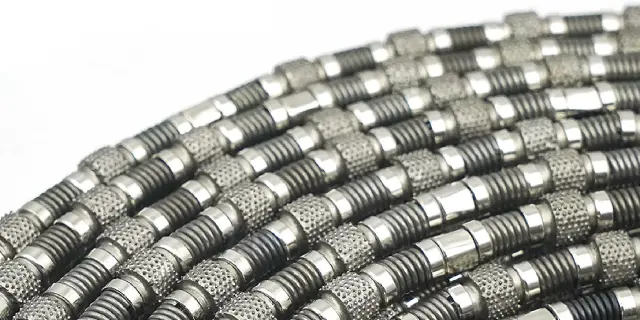

Diamond wire for reinforced concrete cutting - Concrete & Metal Series

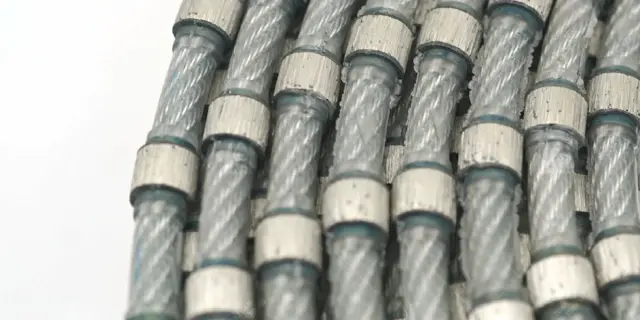

Diamond wire saw for marble - Decorative Stone Series

Compatible with all wire saw machines on the market (Husqvarna, Well, Diamond Products, Pellegrini, CO.FI.PLAST, etc). Best performance achieved with DINOSAW machines due to our application data and engineering expertise.

Full range of accessories available: rubber spacers, springs, crimp connectors, wire connectioners, and steel wire cores for all applications.

Core Technology & Wire Structure

Four engineering decisions behind the wire program. The numbered points on the wire diagram correspond to the systems below.

Wire Selection Workflow

Match the wire in four steps: identify the material class and its hardness, select the machine system and confirm its pulley diameters, choose the diameter class per cutting requirement — precision, production or heavy duty — then set tension, feed and water per the machine's operating chart, tracking meters per wire as the life baseline.

Bead Engineering

The bead is the actual cutting unit: diamond grade, concentration, bond and bead diameter are selected around the material, so marble, granite, concrete and metal do not run on one compromise bead specification — the bead program is the wire's core technology.

Wire Body Construction

Core construction, winding and coating determine flexibility and fatigue behavior through thousands of pulley cycles: quarry wire prioritizes heavy cyclic loading, CNC wire prioritizes path stability and tighter geometry — each construction is its own engineering, matched to the machine it runs on.

Joint Quality

The joint is where a closed-loop wire lives or fails: joining method, dimensional consistency and finishing quality determine whether the connection survives repeated pulley bending without becoming the first failure point — joint integrity is a specification, not an afterthought.

Micro-Wire Precision

0.35–2 mm micro-wire serves precision programs where kerf width, valuable-material yield and fine contour capability matter more than maximum removal rate — the wire class for precision cutting applications.

Mid-Range Production Wire

The 7–11 mm class carries the mainstream production load: CNC stone cutting, contour work and construction cutting where cutting rate and wire life balance — the diameter range most wire saw fleets run daily.

Heavy-Duty 12 mm Wire

12 mm wire is built around higher bead load, abrasion resistance and fatigue durability: quarry extraction and heavy construction cutting demand the maximum removal rate per cut, and the heavy construction serves exactly that duty.

Configured Wire vs. Universal Wire

A configuration comparison for wire saw operators.

Configured Wire vs. Universal Wire
Universal Wire	VS	Configured Wire
One average bond	Bead specification	✓ Per material class
Unpredictable across materials	Wire life	✓ Engineered per application
Assumed compatibility	Machine fit	✓ Pulley & system matched
Varies by supplier	Joint quality	✓ Controlled specification
Occasional mixed use	Best for	✓ Production wire saw fleets

Note: configurations vary by brand and model; actual performance depends on the specific machine, material and working conditions.

The Manufacturer Behind the Wire Program

DINOSAW is a manufacturer of CNC stone processing machinery, specializing in diamond wire saw machines and CNC stone cutting equipment. With more than 20 years of R&D and manufacturing experience, DINOSAW contributes to industry standards including T/CMES 41001-2025 for CNC wire saw machines, holds 100+ technical patents, and supplies equipment and technical support to customers in 120+ countries and regions. Its manufacturing and management systems are certified to ISO 9001, ISO 14001 and ISO 45001, with CE-compliant machinery for international markets.

DINOSAW CNC stone machinery manufacturing workshop

DINOSAW R&D & ManufacturingMechanical Design · CNC Control Development · Assembly · Testing · Commissioning · Global Delivery

Industry Standard Drafting

DINOSAW contributes to industry standards for stone machinery, including T/CMES 41001-2025 for CNC wire saw machines, as well as standards covering multi-wire saws, combined wire saw machines and five-axis bridge cutting equipment. This work reflects the company’s long-term involvement in machine design, manufacturing, testing and quality control.

20+Years of Stone Machinery R&D & Manufacturing Experience

100+Technical Patents — Covering machine structures, CNC control, cutting systems and stone processing technologies

120+Countries & Regions Served — Equipment, installation and technical support worldwide

CE Compliance & ISO Management Systems

CE: Stone cutting machinery assessed against Machinery Directive 2006/42/EC and relevant EN standards.
ISO: Management systems certified to ISO 9001, ISO 14001 and ISO 45001.

Ordering Requirements & After-Sales Support

DINOSAW configures wire per application and machine, with batch supply and life-baseline guidance for wire saw operators.

Machine FitConfigured per machine system

Provide machine model, drive/guide wheel diameters and existing wire spec.

WaterContinuous at the cut

Water condition affects bead wear and wire life.

Life BaselineMeters per wire

Track cutting meters per wire on your material class.

01 · Pre-Shipment & DeliveryMachine configuration, packaging and transport requirements confirmed before dispatch, with factory inspection and documents verified.

02 · Installation & CommissioningOn-site utilities and foundation check, machine positioning, commissioning and acceptance.

03 · Operator TrainingHands-on training covering routine CNC operation and daily checks of blades, spindles, cooling and lubrication.

04 · After-Sales SupportRemote technical assistance, maintenance support and spare parts coordination throughout the machine's service life.

Diamond Wire Selection & Use FAQ

Common Questions About Diamond Wire Saws

Diameter follows the cutting requirement, and the trade-off is precision versus removal rate. At the precision end, 0.35–2 mm micro-wire cuts narrow kerfs for valuable stock and fine contours — the wire of choice where material loss is money and surface quality is inspected. Mid-range diameters of 7–11 mm serve the mainstream: CNC stone cutting, contour work and construction cutting where cutting rate and wire life balance. At the heavy end, 12 mm wire carries maximum bead load for quarry extraction and demolition where speed per cut matters more than kerf width. The machine sets the boundary: pulley diameters, drive power and wire speed ratings all constrain diameter choice — a wire too thick for the pulley system fatigues prematurely at the joint. The selection sequence is material first, machine second, diameter third: specify all three to DINOSAW and the configuration arrives matched.

Diameter follows the cutting requirement, and the trade-off is precision versus removal rate. At the precision end, 0.35–2 mm micro-wire cuts narrow kerfs for valuable stock and fine contours — the wire of choice where material loss is money and surface quality is inspected. The 7–11 mm class carries mainstream production: CNC stone cutting, contour work and construction cutting where cutting rate and wire life balance. At the heavy end, 12 mm wire carries maximum bead load for quarry extraction and demolition, where speed per cut matters more than kerf width. The machine sets the boundary: pulley diameters, drive power and wire speed ratings all constrain diameter choice — a wire too thick for the pulley system fatigues prematurely at the joint. The selection sequence is material first, machine second, diameter third: specify the material class, machine model, pulley diameters and existing wire life data, and the configuration arrives matched.
