Applicable Materials
Granite, marble, quartzite, basalt, sandstone, limestone and engineered stone
Certifications & Credentials
CE Certified · ISO 9001:2015 · Industry Standard Drafting Participant · 120+ Countries & Regions Served
Granite-Focused Horizontal Cutting | Productivity First

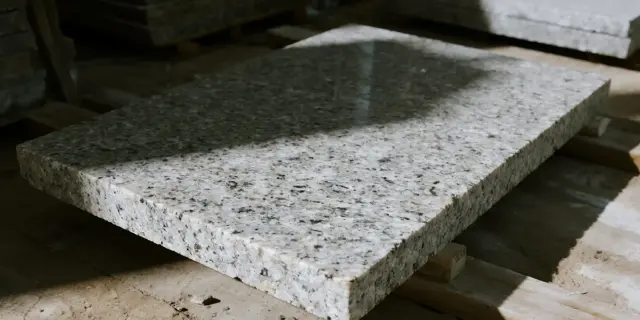

Intro: Granite slab sizing requires straight kerfs, minimal deviation, and consistent dimensional accuracy on production lines. Process: Segment geometry and bond hardness are tuned for granite; wet cutting with defined coolant paths stabilizes heat and kerf integrity, supporting reliable sizing. Benefit: Smooth kerf quality lowers surface roughness and rework; stable performance helps reduce scrap and improves continuous line efficiency.

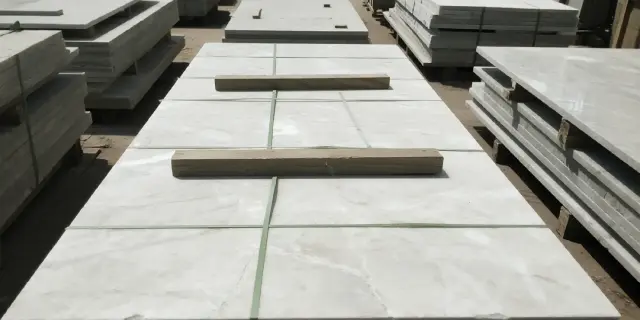

Intro: Engineered stone milling benefits from a metal-bond horizontal blade with controlled chip load and segment orientation. Process: Segmented design and calibrated grit help maintain feed rate while preventing excessive chipping; wet operation improves evacuation and finish. Benefit: Efficient material removal with cleaner finish and stable productivity; fewer pauses for maintenance improve overall line output.

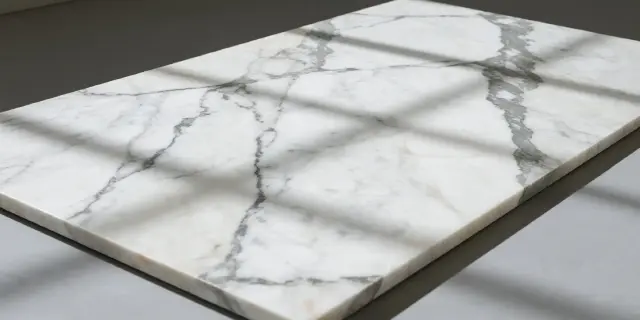

Intro: Marble is softer but prone to edge breakout, requiring a balanced horizontal diamond blade for marble auxiliary slab cutting. Process: A slightly softer bond and refined segment geometry support wet cutting, balancing sharpness and wear to keep edges clean. Benefit: Cleaner edges with fewer chips and stable throughput; improved finish reduces downstream polishing time.

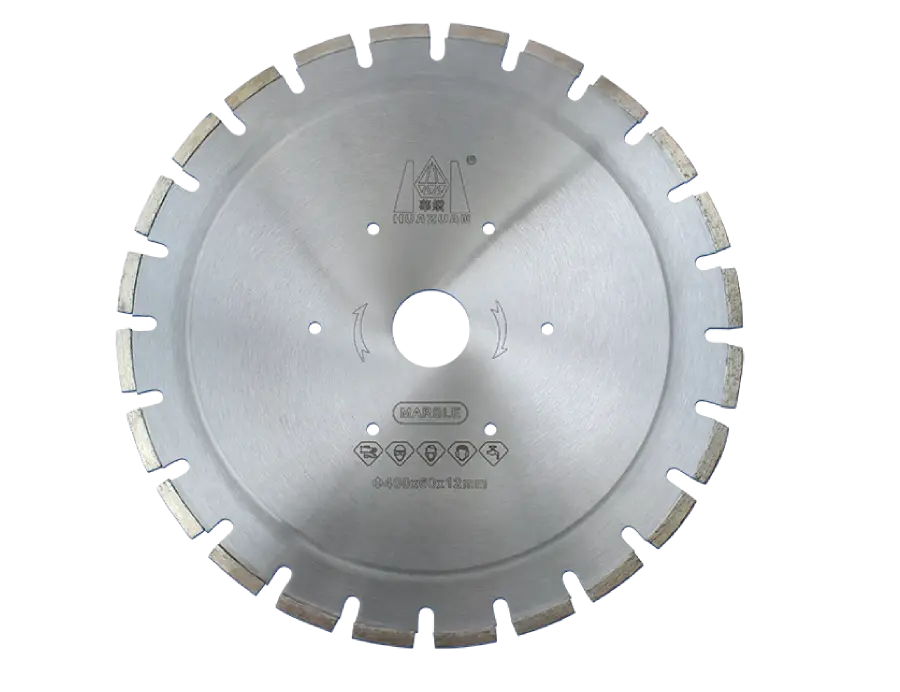

The DINOSAW horizontal diamond saw blade is dedicated tooling for block and slab sizing lines: blade and segment specification configured around the horizontal machine's cutting orientation and load condition, in 400, 450 and 500 mm sizes with continuous wet line operation.
Three diameters cover the horizontal line's sizing range: block cutting, slab sizing and auxiliary slab work on dedicated machines.
Segment count rises from 26 to 33 across the diameter range: rim contact stays proportionate as blade diameter increases.
50/60 mm arbors match horizontal line spindles directly: concentric mounting without adapters protects cut flatness.
Continuous water at the horizontal cut cools segments and clears slurry from the wide contact zone — water supply is part of blade life on these machines.
Applicable materials: Granite, marble, quartzite, basalt, sandstone, limestone and engineered stone.
Typical applications: Block sizing, slab cutting and auxiliary slab production on dedicated horizontal cutting lines — wet operation preferred.
Actual blade life varies with stone hardness, line parameters and water supply.

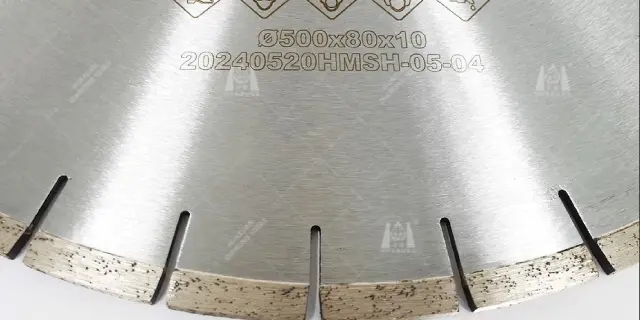

Three diameters — 400 mm (26 segments, 40×5.5×5×8 mm), 450 mm (28 segments) and 500 mm (33 segments, 40×6.6×5×8 mm) — with 50/60 mm arbors. Segment geometry is specified for horizontal cutting loads, and wet operation is the line default.
| Diameter | Segment Dimension | Segment No. | Arbor | |
|---|---|---|---|---|
| Inches | mm | mm | pcs | mm |
| 16" | 400 | 40x5.5x5x8 | 26 | 50/60 |
| 18" | 450 | 40x5.5x5x8 | 28 | 50/60 |
| 20" | 500 | 40x6.6x5x8 | 33 | 50/60 |
Four engineering decisions behind the horizontal blade family. The numbered points on the blade diagram correspond to the systems below.
Match the blade in four steps: confirm the line's blade diameter and arbor, select the bond per the dominant stone class, verify water flow at the cutting zone, then set line feed and track square meters per blade as the life baseline.
DINOSAW specifies the core and segment system around the horizontal cutting line's operating orientation and load condition rather than reusing a standard bridge-saw blade specification: horizontal and vertical machines impose different cutting geometry, spindle configuration and contact conditions, and the blade is built for the machine it runs on.
50/60 mm arbors are the horizontal line spindle standard: direct mounting keeps the blade concentric, and concentricity is what flat-cut surfaces are made of — adapters and their runout stay out of the cut.
Segment count scales with diameter (26 to 33) so rim contact stays proportionate as blade size grows: cutting behavior remains predictable when the line changes blade sizes across programs.
The product family covers granite, marble, quartzite, basalt, sandstone, limestone and engineered stone — with bond selection adjusted to the dominant material class, not one universal formulation across the range: specify the dominant stone, and the bond follows.
Wet operation is the line default: continuous water at the horizontal cut cools the segment and clears slurry from the wide contact zone — water delivery quality is part of blade life on these machines, not just dust management.
Beyond primary block sizing, the range serves auxiliary slab cutting on the same lines: second-operation cuts and trim work run the same blade program without a separate inventory.
A specification comparison for line operators.
DINOSAW is a manufacturer of CNC stone processing machinery, specializing in diamond wire saw machines and CNC stone cutting equipment. With more than 20 years of R&D and manufacturing experience, DINOSAW contributes to industry standards including T/CMES 41001-2025 for CNC wire saw machines, holds 100+ technical patents, and supplies equipment and technical support to customers in 120+ countries and regions. Its manufacturing and management systems are certified to ISO 9001, ISO 14001 and ISO 45001, with CE-compliant machinery for international markets.
DINOSAW provides blade selection per line and material, with batch supply for horizontal cutting operations.
Confirm line blade capacity and flange spec.
Horizontal cuts need full cooling at the contact zone.
Trial cuts verify bond selection on your material mix.
Common Questions About Horizontal Diamond Blade
The cut attitude changes everything about how the blade works. On a bridge saw the blade cuts vertically downward with gravity assisting chip removal, and the workpiece rests on a stable table. On a horizontal line the blade cuts on its side: the contact zone is wide, slurry clearing is harder, the blade's core stiffness is challenged laterally, and chip evacuation works against the cut orientation. Segment geometry engineered for vertical rim speed and slurry behavior under-performs on its side — wear patterns change, and the blade may run hot in zones a vertical cut would clear. Arbor standards also differ: horizontal lines run 50/60 mm spindles as the norm. The practical rule: blades are specified per machine type, and swapping bridge saw blades onto a horizontal line — or vice versa — gives up blade life and cut quality on both. DINOSAW's horizontal program exists because the horizontal line is its own cutting process.
Because the machine imposes a different cutting regime. Horizontal and vertical machines differ in cutting geometry, spindle configuration, contact conditions and slurry behavior — a blade specified for bridge saw duty is engineered for its rim speed, flange system and cut attitude, and mounting it on a horizontal line exposes it to conditions outside its specification, with premature wear as the usual result. Arbor standards commonly differ as well, with 50/60 mm spindles the horizontal line norm. The practical rule: blades are specified per machine type, and swapping bridge saw blades onto a horizontal line — or vice versa — gives up blade life and cut quality on both. DINOSAW's horizontal program exists because the horizontal line is its own cutting process, and the selection starts from the machine orientation, not the material list.
