Gantry Stone Block Cutting Machine for Granite, Marble & Bluestone

Gantry cutting machines excel at processing various natural and engineered stones. Primary materials include granite, marble, limestone, sandstone, travertine, and bluestone. The machines can handle both soft and hard stone varieties with appropriate blade selection.

Material thickness capacity ranges from 950mm to 1350mm depending on machine model. The equipment effectively processes blocks into slabs, tiles, countertops, and architectural elements through precision cutting sequences. Advanced hydraulic systems ensure consistent cutting performance across different stone densities.

Advanced models also process engineered quartz and composite materials for modern construction applications. This versatility makes gantry machines essential equipment for stone processing facilities requiring diverse material handling capabilities and consistent production quality.The machines can handle both soft and hard stone varieties with appropriate blade selection. Material thickness capacity ranges from 950mm to 1350mm depending on machine model. The equipment is particularly effective for creating slabs, tiles, countertops, and architectural elements. Advanced models also process engineered quartz and composite materials for modern construction applications.

PLC (Programmable Logic Controller) automation significantly enhances cutting precision and operational efficiency. The system enables precise control of blade movement, cutting speed, and feed rates through programmable parameters. Operators can preset cutting dimensions and automatically control blade elevation with real-time monitoring.

PLC systems reduce human error, ensure consistent slab thickness, and optimize cutting sequences for maximum material utilization. The automated controls eliminate manual measurement inconsistencies while maintaining steady production quality throughout extended operations.

Advanced models feature touch screen interfaces for user-friendly operation and data logging capabilities for quality control and maintenance scheduling. This integration creates comprehensive operational control that enhances both productivity and production reliability.The system enables precise control of blade movement, cutting speed, and feed rates through programmable parameters. Operators can preset cutting dimensions, automatically control blade elevation, and monitor cutting progress in real-time. PLC systems reduce human error, ensure consistent slab thickness, and optimize cutting sequences for maximum material utilization. Advanced models feature touch screen interfaces for user-friendly operation and data logging capabilities for quality control and maintenance scheduling.

Annual maintenance requires professional inspection of the crossbeam structure, gantry rails, and safety systems. Proper maintenance prevents costly breakdowns and maintains cutting accuracy essential for quality stone production. This systematic approach maximizes equipment longevity and operational reliability.

Weekly maintenance involves inspecting cutting blades for damage, checking hydraulic fluid levels, and calibrating PLC settings.

Monthly procedures include deep cleaning of electrical components, replacing worn segments, and verifying structural alignment.

Annual maintenance requires professional inspection of the crossbeam structure, gantry rails, and safety systems. Proper maintenance prevents costly breakdowns and maintains cutting accuracy essential for quality stone production.

Standard gantry machines accommodate 1-3 blades for basic operations. For multi-blade applications, we strongly recommend multi-blade bridge stone block cutting machines instead.

Bridge Stone Block Cutting Machines provide superior stability and rigidity compared to traditional gantry designs, safely supporting 15-20 blades for maximum production capacity. The key structural difference: traditional gantry machines use overhead crossbeam movement, while bridge cutting machines feature fixed bridge frameworks offering enhanced stability and precision during cutting operations. This superior engineering enables higher blade loads with better cutting accuracy and consistency. Bridge machines excel in high-volume standardized slab production, making them ideal for commercial stone processing facilities requiring reliable output and maximum operational efficiency.

Modern gantry machines incorporate comprehensive safety systems for operator protection. Emergency stop buttons are strategically placed for immediate machine shutdown. Safety guards protect operators from blade contact and stone debris while automatic water systems prevent blade overheating and dust generation.

PLC systems include safety interlocks preventing operation with open guards or improper setup. Warning lights and alarms alert operators to potential hazards, while hydraulic systems feature pressure relief valves preventing over-pressurization. Regular safety training and proper maintenance ensure all protective systems function correctly for safe stone processing operations. This multi-layered safety approach creates secure working environments while maintaining high productivity standards.

Safety guards protect operators from blade contact and stone debris. Automatic water systems prevent blade overheating and dust generation. PLC systems include safety interlocks preventing operation with open guards or improper setup. Warning lights and alarms alert operators to potential hazards. Hydraulic systems feature pressure relief valves preventing over-pressurization. Regular safety training and proper maintenance ensure all protective systems function correctly for safe stone processing operations.

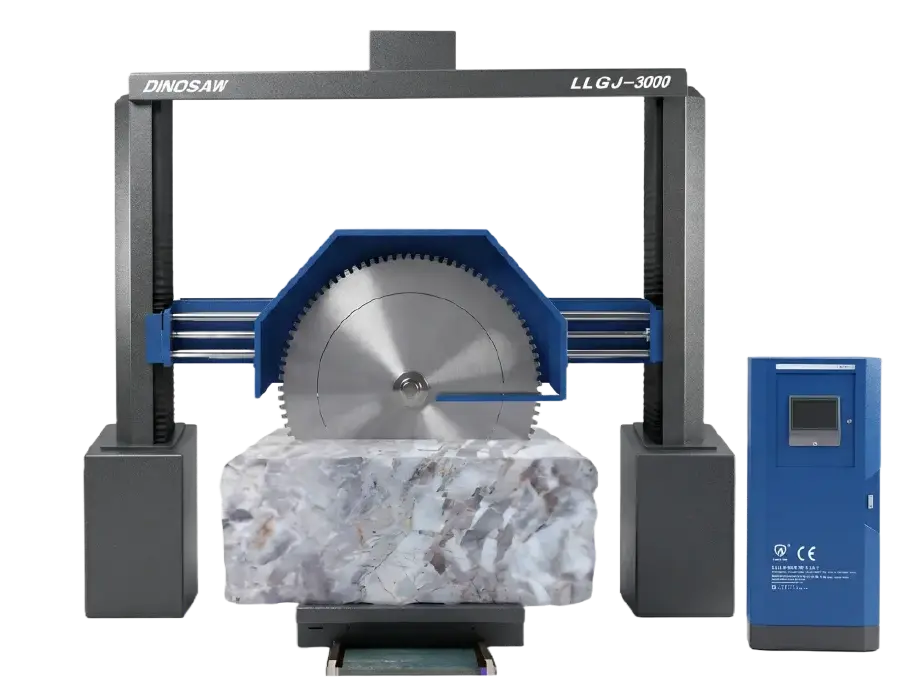

Machine selection depends on block sizes, production volume, and facility space. Common models include LLQJ-2200, LLQJ-2500, and LLQJ-3000 with cutting capacities of 950mm, 1100mm, and 1350mm respectively. Consider maximum block dimensions your quarry produces and desired slab thickness range.

Larger machines handle bigger blocks but require more facility space and power consumption. Evaluate daily production targets as multi-blade systems on larger frames increase output significantly. The cost-benefit analysis should include installation requirements and operational efficiency gains.

Factor in future expansion plans and material types when making your selection. Professional consultation helps determine optimal machine specifications for your specific stone processing requirements and operational constraints. This ensures long-term investment value and operational success.Consider maximum block dimensions your quarry produces and desired slab thickness range. Larger machines handle bigger blocks but require more facility space and power consumption. Evaluate daily production targets - multi-blade systems on larger frames increase output significantly. Factor in future expansion plans and material types. Professional consultation helps determine optimal machine specifications for your specific stone processing requirements and operational constraints.

Yes — that is one of the LLQJ's design points. The heavy steel frame spreads the cutting load across a level workshop floor, so no foundation construction is needed and installation completes in days. On the automation side, PLC sequences replace operator skill: one trained operator supervises the cycle instead of a manual cutting crew, which is where the roughly 60% labor reduction comes from. For output planning, the multi-blade combination on the 2200 model cuts several slabs per pass — DINOSAW can match the model to your block sizes and daily volume.

They solve different production tasks. The QSDP bridge single-blade cutter is the flexibility choice: seven blade sizes from 1600 to 3200 mm, a trolley table and single-blade cutting for varied blocks, trimming, kerbs and tombstone blanks. The LLQJ gantry is the automation choice: a heavy multi-blade platform with PLC cycles, about 60% lower labor and no foundation — built for repeated slab programs rather than mixed jobs. Varied blocks and products point to QSDP; standardized volume on a simple installation points to LLQJ.

Yes — switching between granite and limestone is a parameter change, not a hardware change. The frequency converter adjusts cutting speed and feed to the stone: slower, controlled passes on abrasive granite and basalt, faster cycles on soft limestone and marble. The PLC stores sequences per material, so the operator recalls the program instead of re-deriving settings — one machine covers the nine-stone range without blade or structure modifications between jobs.
