Learn to properly operate and maintain your gantry stone cutting machine with a clear maintenance schedule. Get SOPs, troubleshooting for hydraulic system and PLC calibration, and safety protocols to keep your equipment running efficiently with proper water cooling.

TL;DR:Maintenance Essentials

  • Prevention Over Cure:Adhering to a daily, weekly, and monthly maintenance schedule is the most effective way to prevent unexpected downtime and costly repairs.
  • Safety First:Always wear Personal Protective Equipment (PPE) and ensure the Gantry Stone Cutting Machine is fully powered down and locked out before performing any maintenance, strictly following safety protocols.
  • Know Your Machine:Familiarity with key components like the hydraulic system, guide rails, and PLC controller helps you diagnose and resolve common issues quickly.
For detailed procedures, download the official User Manual or contact our support team for assistance.


SOPs: Daily Checklist for the Industrial Stone Gantry Cutter

Consistency is key to operational excellence. Integrate these checklists into your daily workflow to ensure nothing is overlooked.
  • Pre-Operation Inspection:Check that all safety guards are in place, emergency stop buttons are functional, and the work area is clear of obstructions.
  • Block Changeover Adjustments:Safely remove cut slabs and clean the worktable. After positioning a new block, re-measure and confirm its dimensions, then input the new parameters into the PLC interface.
  • Cutting Accuracy Calibration:Before starting a new cutting job, perform a test cut and measure the slab thickness with calipers to ensure it matches the PLC setting (e.g., within a ±0.5mm tolerance).
  • Key Part Lubrication:Check and apply lubricant to all moving parts, such as guide rails, gears, and bearings, according to the maintenance schedule.
  • Consumables Replacement:When replacing a diamond blade, always power off and lock out the machine first. Use the proper tools to remove the old blade and ensure the new one is mounted in the correct direction and securely fastened.
  • Daily Safety Check:At the end of a shift, clean slurry and debris from around the machine. Check water hoses and electrical cables for any signs of wear and report any abnormalities.


Top 10 Common Issues Troubleshooting Flow

Use this table to quickly diagnose and resolve common operational issues.
Symptom
Potential Cause
Solution & Prevention
Uneven Cut Surface
1. Uneven blade wear 2. Debris on guide rails 3. Feed rate too fast
Fix:Replace blade; clean rails; reduce feed rate via the frequency converter. Prevention:Regularly inspect blades and follow recommended cutting parameters.
Abnormal Noise During Operation

1. Bearing needs lubrication or is damaged

2. Blade is loose

Fix:Stop the machine immediately. Check and lubricate bearings; check and tighten the blade.

Prevention:Adhere strictly to the lubrication schedule.

Hydraulic System Leakage
Worn or damaged seals
Fix:Replace the damaged seals. Prevention:Include seal inspection in the quarterly maintenance schedule.
Blade Overheating or Smoking
Insufficient water cooling
Fix:Stop immediately. Check the water pump and clear all cooling nozzles. Prevention:Check the water cooling system before every shift.
Slab Edge Chipping
1. Dull blade 2. Feed rate too fast
Fix:Replace or dress the blade; reduce the feed rate. Prevention:Monitor blade life and use correct parameters for different stones.
Blade Wobble
1. Flange contamination 2. Bent blade
Fix:Clean flange contact surfaces; inspect and replace bent blade. Prevention:Clean flanges every time a blade is changed.
Water Pump Failure
1. Blocked filter 2. Pump motor fault
Fix:Clean or replace the filter; check the pump motor and wiring. Prevention:Incorporate filter cleaning into the weekly maintenance schedule.
Safety Interlock Not Engaging
Sensor is misaligned or damaged
Fix:Realign or replace the sensor. Prevention:Verify all safety sensor functions during weekly checks.
Slab Thickness Inconsistency
1. PLC parameter error 2. Hydraulic drift
Fix:Verify cutting parameters in the PLC; check the hydraulic system for internal leaks. Prevention:Perform regular cutting accuracy calibration.
Low Hydraulic Pressure
1. Low hydraulic oil level 2. Worn hydraulic pump
Fix:Top up hydraulic oil to the standard level; inspect and replace the worn pump. Prevention:Include hydraulic oil level checks in the daily maintenance list.


Preventive Maintenance Schedule for a Gantry Stone Block Cutter

A disciplined maintenance schedule is the best insurance against unexpected failures. Here is a manufacturer-reported checklist.

Daily Checks

  • Clean machine and work area
  • Inspect water cooling system
  • Visually inspect blade for cracks
  • Check all safety guards

Monthly Checks

  • Check and tighten all main bolts
  • Inspect hydraulic oil level and quality
  • Check electrical cabinet for dust

Weekly Checks

  • Lubricate guide rails and gears
  • Check drive belt tension
  • Clean water tank filter

Quarterly Checks

  • Perform a full geometric alignment check
  • Inspect hydraulic system seals
  • Back up the PLC program

Field Tips from Operators Using the Gantry Block Slabbing Machine

Years of experience lead to valuable insights. Here are some manufacturer-reported tips from seasoned operators:
  • "Listen" to Your Cut:An experienced operator can tell by the sound of the cut if the feed rate is too fast or if the blade is becoming dull. A high-pitched whining sound often indicates the blade is being pushed too hard. (For visual examples, search for "stone cutting blade sounds" on YouTube).
  • Step-Down Cutting:When cutting very hard granite, instead of one deep pass, use two or three shallower passes. This reduces stress on the blade and motor, prolonging their life.

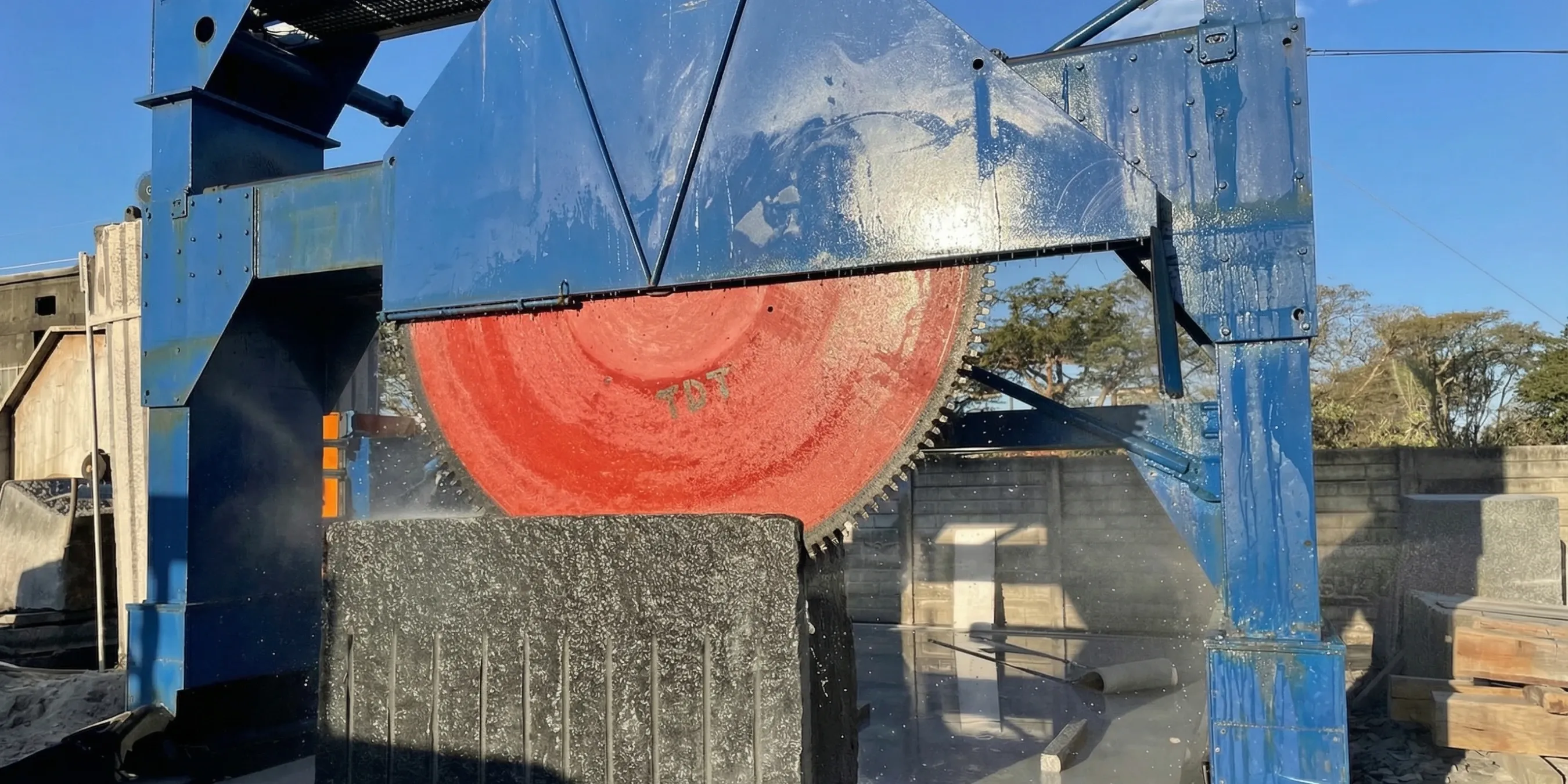

13 (2)@1.5x.webp

Safety & Compliance for PLC-Controlled Gantry Saw Operations

Operating heavy machinery carries inherent risks, which is why a rigorous safety culture is paramount.
First, Personal Protective Equipment (PPE) is mandatory. This includes safety glasses, steel-toed boots, hearing protection, and appropriate gloves. Second, dust control is a critical health and safety issue. According to the U.S.O ccupational Safety and Health Administration (OSHA), wet cutting is an essential engineering control to suppress respirable crystalline silica. Ensure the water cooling system is always active during cutting. Furthermore, as advised by CDC/NIOSH safe work practices, never use compressed air for cleanup as it aerosolizes dust.

Operation & Maintenance FAQ

How do I know when a diamond blade needs replacement?

The most common signs are a noticeable decrease in cutting speed, an increase in motor amperage draw, or visible signs of chipping and dulling on the blade segments.
  • Context:As a blade wears, its diamond segments become less effective, requiring more force to cut. This translates to slower performance and higher energy consumption.
  • Risk:Continuing to use a worn-out blade leads to poor cut quality, can damage the stone, and puts unnecessary strain on the machine's motor and structure.
  • Next Step:Implement a blade tracking system. Log the total cutting distance or hours for each blade to predict its end-of-life and order replacements in advance.

What kind of lubricant is needed for daily maintenance?

You should use a high-quality industrial grease specified for heavy machinery guide rails and bearings. The exact type is listed in your machine's User Manual.
  • Context:Proper lubrication reduces friction, prevents wear on critical moving parts, and ensures smooth, precise movement of the gantry and cutting head.
  • Risk:Using the wrong type of lubricant (or no lubricant) can lead to premature component failure, inaccurate cuts, and costly repairs.
  • Next Step:Add "check and apply lubricant" to your daily pre-operation checklist. Keep a dedicated grease gun and the correct type of lubricant near the machine.

What should I do when the machine alarm sounds?

Immediately press the emergency stop button to halt all machine movement, then check the PLC screen for the specific error code or message.
  • Context:Alarms are safety features designed to indicate a problem, such as a motor overload, a limit switch being tripped, or a PLC communication issue. The error code will tell you where to look.
  • Risk:Ignoring an alarm or simply resetting it without diagnosing the root cause can lead to severe equipment damage or create a serious safety hazard.
  • Next Step:Consult the troubleshooting section of your user manual, which lists common error codes and their solutions. If you cannot resolve the issue,contact our technical support with the error code.

How often should I calibrate the machine's alignment?

A full geometric alignment check is recommended as part of your quarterly maintenance schedule. However, you should perform a quick accuracy check whenever you notice signs of uneven cutting.
  • Context:Over time, vibrations and normal wear can cause slight misalignments in the guide rails and crossbeam. Regular calibration ensures the machine maintains its cutting precision.
  • Risk:An uncalibrated machine will produce slabs that are not perfectly square or have inconsistent thickness, leading to material waste and problems in downstream finishing processes.
  • Next Step:Train your maintenance team on the full alignment procedure outlined in the user manual. This is a critical skill for maintaining long-term machine accuracy.

How often should hydraulic oil be replaced?

The general guideline is to replace the hydraulic oil every 2,000 operating hours or at least once a year, whichever comes first.
  • Context:Over time, hydraulic oil degrades from heat and contamination, losing its lubricating properties and ability to transfer power efficiently.
  • Risk:Using old or contaminated oil can cause premature wear on the hydraulic pump and valves, leading to jerky movements, loss of power, and costly system failures.
  • Next Step:Refer to your user manual for the specific type of hydraulic oil recommended. Add "Check hydraulic oil condition and change if necessary" to your semi-annual maintenance schedule.

What PPE is required during cutting and maintenance?

A full set of PPE is mandatory for all personnel working on or near the machine to mitigate risks from flying debris, noise, and mechanical hazards.
  • Context:Essential PPE includes: safety glasses with side shields, steel-toed boots, hearing protection (earplugs or earmuffs), and heavy-duty gloves. During maintenance, lockout-tagout equipment is also required.
  • Risk:Failure to wear proper PPE can result in serious injuries, including eye damage from stone chips, foot injuries from falling objects, hearing loss from prolonged noise exposure, and hand injuries during maintenance.
  • Next Step:Establish a strict PPE policy in your workshop. Post clear signage near the machine indicating required PPE and conduct regular safety briefings to reinforce the rules.
