Diamond Cup Wheel for Concrete & Stone Grinding

Diamond cup wheels are grinding tools for concrete, masonry and stone. They level floors, remove paint/epoxy, and shape edges. Common types include double‑row for smoother finishes, turbo for faster removal, and PCD for tough coating stripping. They fit angle grinders and floor grinders. fast material removal with clean finishes, long life and safer work. Balanced designs reduce vibration. Match bond hardness and segment style to the material to maximize efficiency and lower project time and cost.

3 Grinding TypesDouble-row for control · Turbo for speed · PCD for coating removal

30#–120#From heavy stock removal to surface refinement

80–230 mmGrinder sizes for floor, edge and preparation work

Applicable Materials

Concrete, masonry, natural stone, epoxy and paint coatings, asphalt

Certifications & Credentials

CE Certified · ISO 9001:2015 · Industry Standard Drafting Participant · 120+ Countries & Regions Served

Get a Custom Quote

Dinosaw machine Diamond Cup Wheel for Concrete & Stone Grinding

Applications Performance Specs Technology Comparison Manufacturing Support FAQ

Compatible Materials & Products

From Concrete Leveling to Coating Removal

Masonry > Coating Removal

Removing old paint, adhesives, or waterproof coatings from masonry walls is a tough job. Manual scraping is time-consuming, and chemical methods pose environmental and safety risks. We recommend our turbo-style diamond cup wheels, whose unique turbo segment design offers faster grinding speed and effective debris removal. A hard bond formulation extends the tool's life on abrasive materials. This design quickly strips surface adherents without excessively damaging the substrate. This simplifies prep work for renovations, reducing labor costs, and creating a clean surface for new finishes.

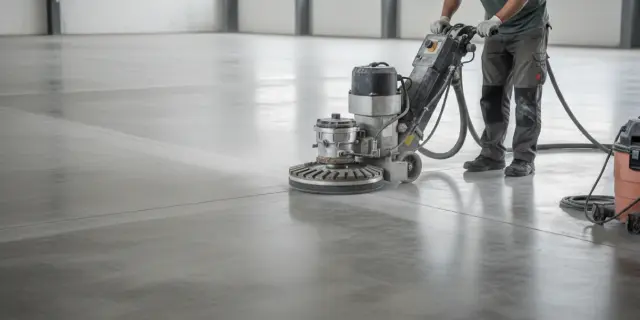

Hard Concrete > Heavy-Duty Grinding

For high-strength concrete with hard aggregates, conventional grinding wheels wear out quickly and perform poorly, a major challenge in heavy-duty grinding jobs. We have developed specialized cup wheels with PCD (Polycrystalline Diamond) segments that work by scraping rather than grinding for extremely efficient removal. The robust body of these wheels withstands high impact, making them suitable for large floor grinders. This enables clients to achieve several times the efficiency of traditional wheels, significantly shortening project timelines and reducing overall costs.

Stone > Grinding & Finishing

Stone fabrication needs floor leveling, edge chamfering, and staged grinding from coarse to fine to prepare slabs for polishing. Use double-row cups for fast surface leveling, single-row/fine-grit for precise edge work, turbo with soft bond for coarse stock removal, and finer grits with medium-hard bond to refine scratches. One tool family covers all steps, delivering uniform flatness, chip-free edges, and a smooth finish while reducing time and cost.

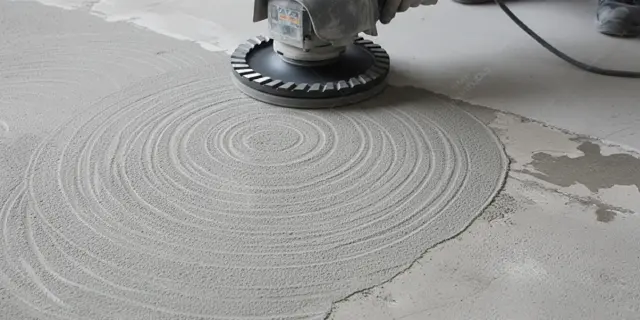

Epoxy/Paint > Floor Preparation

Before applying a new epoxy coating, the old layer must be completely removed and the surface roughened to ensure adhesion, a core challenge in floor renovation. Our T-segment diamond cup wheels are optimized for this. Their unique T-shape prevents sticky debris from clogging the grinding face, maintaining efficient grinding power. A coarser diamond grit helps rapidly remove coatings and creates an ideal rough surface. This one-step solution for coating removal and surface prep ensures the adhesion and durability of the new epoxy floor, preventing future delamination issues.

Asphalt > Bumps Removal

Bumps on asphalt roads, caused by settlement or repairs, affect driving safety. Fast and economical repair of these local issues is vital. We recommend a hard-bond turbo diamond cup wheel. The hard bond resists asphalt's abrasive and sticky nature, while the turbo design helps remove material quickly at lower temperatures, preventing melting. It's suitable for handheld grinders for flexible, spot repairs. This offers a cost-effective solution for road maintenance that quickly restores pavement smoothness.

Real Grinding Performance & Key Metrics

DINOSAW diamond cup wheels are material-removal tools: double-row wheels for controlled leveling, turbo wheels for fast stock removal, and PCD cutters for stripping coatings — grinding, leveling and shaping surfaces before the finishing stage begins.

Double-Row / Turbo / PCD

Construction Options

Three constructions match the removal task: double-row for controlled leveling, turbo for maximum stock removal rate, PCD for stripping coatings that load diamond segments.

30#–120#

Grit Range

Coarse 30/40# grits remove stock fast; 100/120# grits refine the ground surface — the grit ladder prepares the substrate for its next process.

80–230 mm

Diameter Range

Diameters from 80 to 230 mm fit the angle grinder fleet: the cup wheel is sized to the tool and the removal task, not the other way around.

4 Interfaces

Mounting Standards

20 mm, 22.23 mm, M14 and 5/8"-11 interfaces cover international grinder standards — direct mounting without adapter compromises.

Applicable materials: Concrete, masonry, natural stone, epoxy and paint coatings, and asphalt.

Typical applications: Floor leveling and preparation, coating removal, stone edge shaping, chamfering, high-spot grinding and surface preparation before polishing or coating.

Actual wheel life varies with material abrasiveness, grinding pressure and grit selection.

Specs and options

Cup wheels are offered 3"–9" (80–230 mm) in double-row, turbo and PCD constructions, with diamond grits 30/40# to 100/120# on grinding models and joint options 20 mm, 22.23 mm, M14 and 5/8"-11 — sized and jointed per grinder fleet.

Diameter		Grit	Joint
Inches	mm
3"	80	30/40#, 40/50#, 60/80#, 100#120# etc.	20mm, 22.23mm, M14, 5/8"-11 etc.
4"	100
5"	125
6"	150
7"	180
9"	230

Core Technology & Wheel Structure

Four engineering decisions behind the cup wheel range. The numbered points on the wheel diagram correspond to the systems below.

Cup Wheel Grinding Workflow

A grinding job follows four steps: strip coatings first with PCD where present, level and shape with turbo or double-row at coarse grit, refine with finer grits for the next process, then clean the surface — progressing grits only when the coarse step has done its work.

Double-Row Controlled Grinding

Two segment rows distribute contact across more cutting points: removal runs steady and controlled with a flatter finish — the floor-leveling and edge-correction default, still a grinding tool rather than a polishing one.

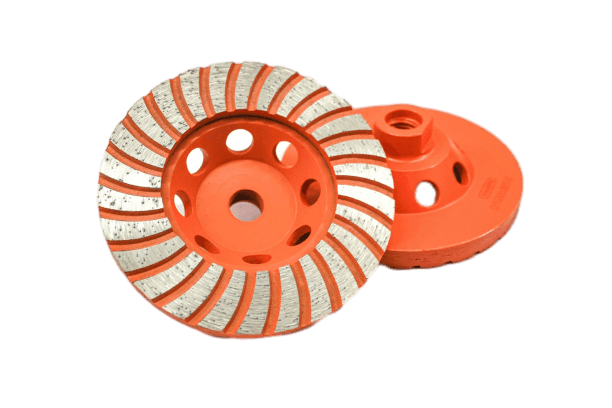

Turbo Fast Removal

Open turbo segment geometry prioritizes cubic-centimeters-per-minute: swarf clears fast and diamond exposure stays aggressive in hard concrete and stone — the choice when the job is bulk reduction.

PCD Coating Stripping

PCD cutters attack soft or gummy coatings by cutting and lifting them from the substrate: epoxy, paint and adhesive residues that would load and smear conventional diamond segments strip cleanly at high rate, protecting the substrate beneath.

Heat & Dust Evacuation

Segment gaps carry dust and debris through the grinding zone: the wheel loads slower and holds its cutting behavior through the pass instead of smearing — open geometry is the loading defense in dry grinding.

Interface Standardization

Four joint standards cover grinders worldwide: each wheel mounts on its proper thread or arbor directly, keeping runout — and the vibration it causes — out of the grinding surface.

Grit-Step Preparation Logic

The grit ladder serves preparation, not gloss: coarse steps remove stock and level; finer diamond grits reduce the grinding scratch so polishing, coating or installation follows on a properly prepared surface — the cup wheel's job ends where the finishing system's begins.

Cup Wheel Construction Selection

A three-way selection table for grinding and coating removal.

Construction	Core Task & Advantage
Double-Row	Controlled leveling — stable, smoother removal
Turbo	Heavy stock removal — fastest diamond grinding
PCD	Coating stripping — shears epoxy & paint clean

Note: conventional equipment varies by brand and model; actual performance depends on the specific machine, material and working conditions.

The Manufacturer Behind the Cup Wheel Range

DINOSAW is a manufacturer of CNC stone processing machinery, specializing in diamond wire saw machines and CNC stone cutting equipment. With more than 20 years of R&D and manufacturing experience, DINOSAW contributes to industry standards including T/CMES 41001-2025 for CNC wire saw machines, holds 100+ technical patents, and supplies equipment and technical support to customers in 120+ countries and regions. Its manufacturing and management systems are certified to ISO 9001, ISO 14001 and ISO 45001, with CE-compliant machinery for international markets.

DINOSAW CNC stone machinery manufacturing workshop

DINOSAW R&D & ManufacturingMechanical Design · CNC Control Development · Assembly · Testing · Commissioning · Global Delivery

Industry Standard Drafting

DINOSAW contributes to industry standards for stone machinery, including T/CMES 41001-2025 for CNC wire saw machines, as well as standards covering multi-wire saws, combined wire saw machines and five-axis bridge cutting equipment. This work reflects the company’s long-term involvement in machine design, manufacturing, testing and quality control.

20+Years of Stone Machinery R&D & Manufacturing Experience

100+Technical Patents — Covering machine structures, CNC control, cutting systems and stone processing technologies

120+Countries & Regions Served — Equipment, installation and technical support worldwide

CE Compliance & ISO Management Systems

CE: Stone cutting machinery assessed against Machinery Directive 2006/42/EC and relevant EN standards.
ISO: Management systems certified to ISO 9001, ISO 14001 and ISO 45001.

Ordering Requirements & After-Sales Support

DINOSAW provides wheel selection per application and batch supply for grinding fleets.

Tool Fit20/22.23 mm, M14, 5/8"-11

Match joint exactly to grinder spindle.

Dust ControlExtraction recommended

Silica dust rules apply to concrete grinding.

Application MatchPCD for coatings only

PCD cutters serve coating stripping, not stone grinding.

01 · Pre-Shipment & DeliveryMachine configuration, packaging and transport requirements confirmed before dispatch, with factory inspection and documents verified.

02 · Installation & CommissioningOn-site utilities and foundation check, machine positioning, commissioning and acceptance.

03 · Operator TrainingHands-on training covering routine CNC operation and daily checks of blades, spindles, cooling and lubrication.

04 · After-Sales SupportRemote technical assistance, maintenance support and spare parts coordination throughout the machine's service life.

Diamond Cup Wheel Selection & Use FAQ

Common Questions About Diamond Cup Wheels

Match the construction to the material behavior. Double-row wheels suit stone and concrete grinding where surface quality matters: more cutting points per rotation give steady, controlled removal with less gouging — the floor-leveling and edge-shaping default. Turbo wheels maximize removal rate: open geometry clears swarf fast in hard concrete, at some cost to surface smoothness — the choice for bulk reduction and high-spot grinding. PCD wheels are coating specialists: their cutters shear epoxy, paint and adhesives that would gum and load any diamond segment. The classic mistake runs PCD on bare concrete or stone, wasting an expensive tool on work a diamond wheel does better; the other mistake is attacking thick epoxy with a turbo diamond wheel, which loads and burns. One rule orders the fleet: coatings present → PCD; bare material → diamond, double-row for control, turbo for speed.

No — they are sequential stages of one workflow, not substitutes. The cup wheel removes material: it levels high spots, shapes edges and strips coatings, leaving a ground surface with a visible scratch pattern. Polishing pads refine that scratch pattern into gloss: they remove almost no stock, and they cannot fix the leveling or shaping work — running pads over an uneven or coated surface just polishes the defects. The standard workflow is cup wheel first, pads second: grind and level to the required geometry, then run the grit ladder to the specified gloss. Shops that try to skip the grinding stage spend pad life trying to do removal work pads were never designed for, and shops that skip the pad stage deliver a ground surface where a polished one was specified. Use the cup wheel to prepare, the pads to finish — the tools divide the job cleanly.

One task each, and the selection is direct. Epoxy, paint or adhesive removal → PCD: the cutters lift coatings without loading, and the substrate survives intact. A smoother, flatter concrete surface → double-row: the two-row contact pattern levels steadily with controlled finish quality — then finer grits reduce the scratch before coating or polishing. Grinding down a high spot fast → turbo: open geometry and aggressive exposure remove bulk quickly, with the understanding that the surface needs a double-row or finer pass afterward if flatness matters. Many grinder fleets carry all three because real jobs mix the tasks: strip the coating with PCD, level with double-row, reduce the high spots with turbo, then hand off to the finishing stage. If you stock one construction only, choose by your dominant task and add the others as the work demands.
