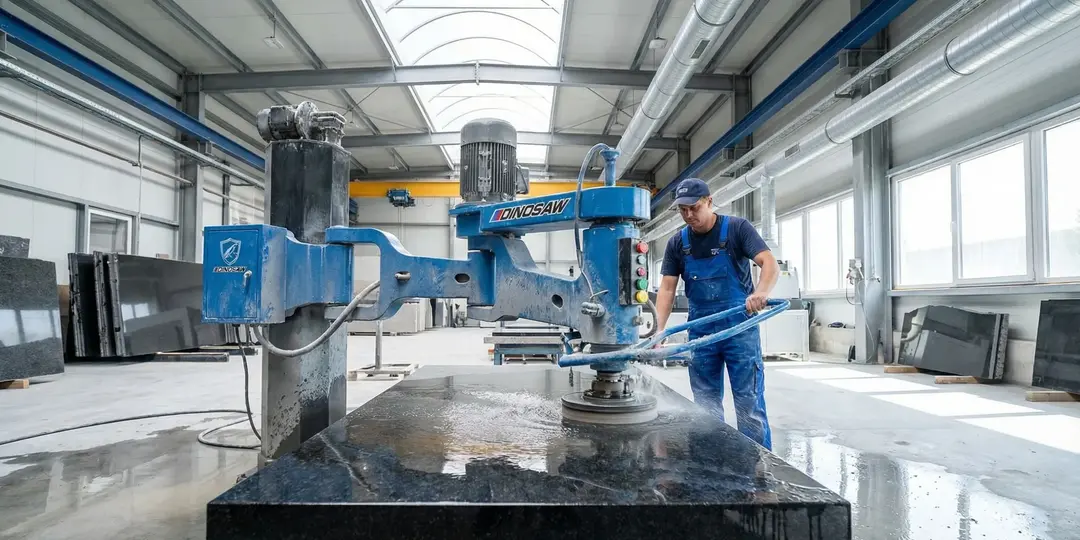

Manual Stone Polishing Machine for Granite & Marble

The DINOSAW SFMJ manual stone polishing machine effectively processes granite, marble, limestone, quartz, and various natural stones for flat surface applications.

The dual-speed motor system (750-1490 rpm) intelligently adapts to different stone hardness levels, while the precision 220mm grinding pad delivers consistent results across tombstones, kitchen countertops, curbstones, and floor tiles.

The integrated water cooling system (3m³/h consumption) prevents thermal damage during extended processing sessions, ensuring optimal surface quality for both residential and commercial stone fabrication projects.

The pneumatic pressure assistance system provides consistent force support while maintaining complete operator control.

This innovative design eliminates operator fatigue during extended polishing sessions, ensuring uniform material removal across large stone surfaces. The system assists with pressure application but operators retain full manual control over processing speed, pressure intensity, and movement patterns.

This allows instant adaptation to varying stone characteristics and specific surface requirements for optimal polishing results across different materials and applications.

The SFMJ-2600 features a 2600mm gyro radius with 0.7-ton construction, making it ideal for standard stone processing applications and smaller workshop environments.

In contrast, the SFMJ-3000 offers an expanded 3000mm radius with robust 0.9-ton construction, specifically designed for larger stone processing projects and higher production volumes.

Both models maintain identical core specifications: 4.5/5.5kW motor power, 0-800mm vertical stroke capacity, and 3m³/h water consumption, ensuring consistent performance standards across the entire product range.

Manual stone polishing machines offer distinct advantages for specific applications and business models.

They provide superior flexibility for custom stone work, require significantly lower initial investment compared to automated systems, and operate without complex programming requirements.

This makes them perfect for small to medium-sized businesses specializing in memorial work, custom architectural elements, and unique fabrication projects where adaptability and operator control outweigh high-volume production requirements.

Manual machines also enable immediate response to custom specifications and design changes during processing.

Optimal performance requires a structured maintenance approach with regular daily, weekly, and monthly procedures.

Daily operations should include water system inspection, grinding disc condition assessment, and operational parameter verification.

Weekly maintenance involves thorough lubrication of guide components, pneumatic system pressure checks, and motor performance evaluation.

Monthly procedures include comprehensive pressure system calibration, electrical connection inspection, and grinding wheel alignment verification.

Annual professional servicing addresses internal mechanical components and electrical system diagnostics.This schedule ensures maximum machine lifespan while maintaining consistent stone processing quality standards.

The DINOSAW SFMJ manual stone polishing machine specializes exclusively in flat surface polishing applications, delivering exceptional results across diverse stone materials.

It excels at processing granite tombstones, marble kitchen countertops, limestone curbstones, quartz commercial surfaces, and natural stone floor tiles.

The machine's flat surface processing capabilities make it ideal for memorial monuments, bathroom vanity tops, stair treads, wall panels, door thresholds, and architectural elements requiring smooth, polished flat surfaces.

This focused design ensures superior precision and consistency for all flat stone processing requirements.
